Material handling cyclopedia; a reference book covering definitions, descriptions, illustrations and methods of use of material handling machines employed in industry (1921)
Wright, Roydon Vincent, 1876- ed, Little, John G., joint ed, Augur, Robert C., joint ed · New York, N.Y., Simmons-Boardman Publishing Co · leaf 842

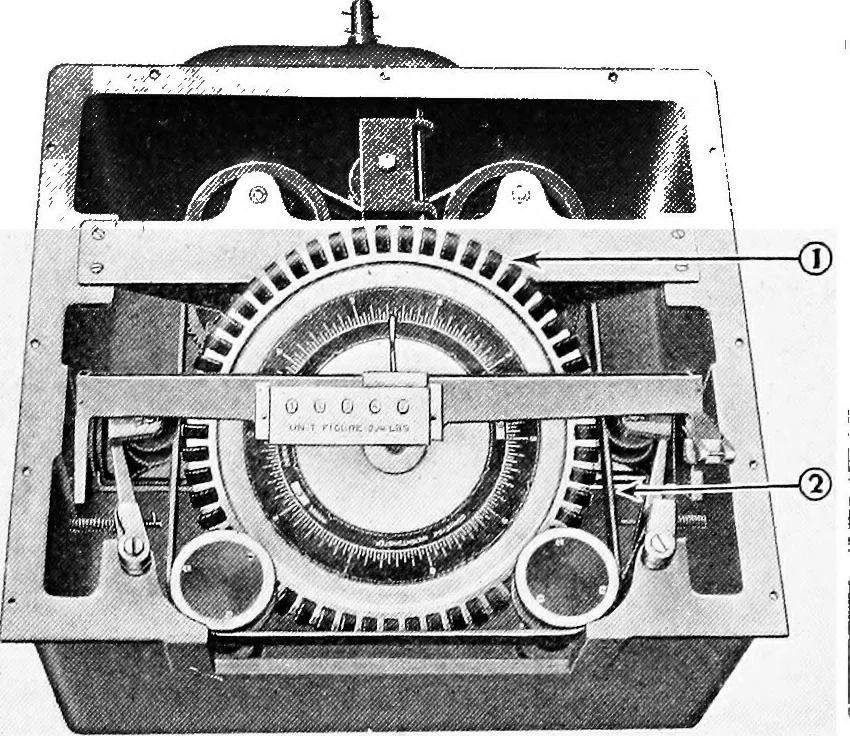

th Inclined BeltConveyor. The method of recording the weight can be seen inthe illustration of the integrator. Rollers are mountedaround the periphery of the disc (1), and the belt (2),which is driven by the conveyor, rubs agamst thesedisc rollers at the right and left. The disc is earnedon a… … Detail of Integrator Box. simple mechanism records this motion and furnishes anaccurate record at all times. Troughing Idlers ; and Weighted Take-Ups With continual operation theend pulley of the average idlermight sag, thus giving a vari-able trough. As this is detri-mental to accurate weighing,…
Hoisting machinery · Conveying machinery
