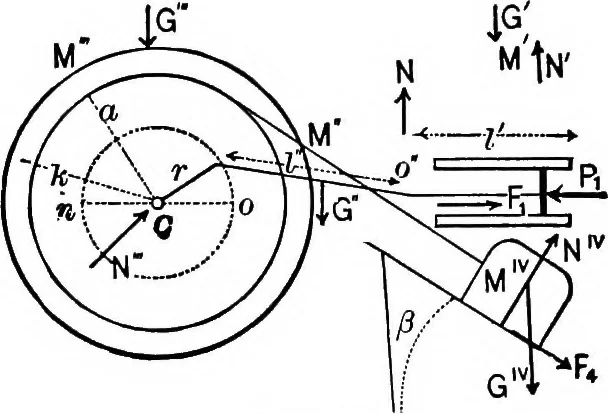

KttY, AND PoWKB. 151 ehown in the figure. The only mutual friction considered willbe at the crank-pin, and if this as an average = F\ the workdone on it between o and n = Fnr, where r = radius ofcrank-pin. Tlie work done by P, tlie efEective steam-pressure(let it be constant) during this period is… … Fia. 159. upon G^, = G^^na sin /?, where a = radius of drum; thatupon the friction F^, = Fjia. The pressures W, JV, JV, andI^, and weights G and G, are neutral, i.e., do no work eitherpositive or negative. Hence the left-hand member of (XYI.)becomes, between o and n, PJI - FJ, - Fnr - G^-na sin /3…
