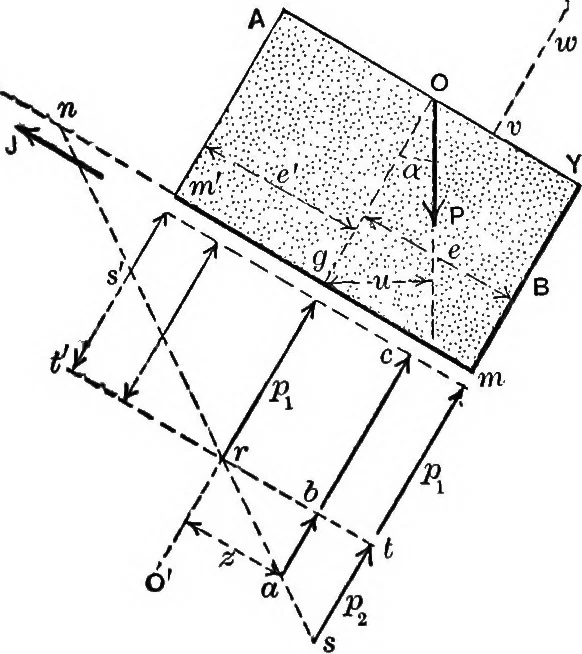

nter of gravity of theplane figure formed by thecross-section. Let the unit stress on theend of the extreme fiber atm be represented by thelength sm and that [also com-pression (say)] on the otherextreme fiber, at m, by sm.Draw the straight line ss;then by the common theory of flexure the stress on… … Fia. 300. FLEXURE. COLUMNS AND HOOKS. OBLIQUE FORCES. 353 parallel to mm, and we_now have the stress on any fiber as cdivided into two parts be, or p^, the same for all the fibers; andab, different for the different fibers but proportional to thedistance z of the fiber from g. Hence we have:the…
