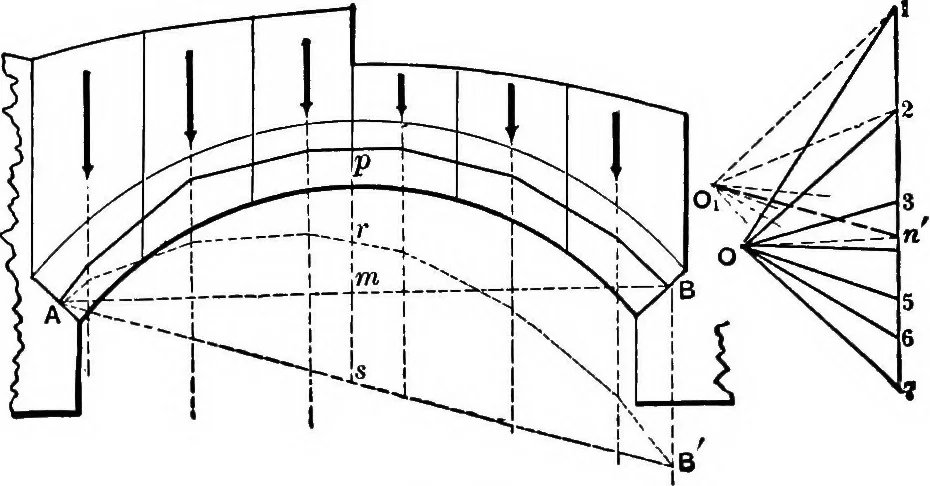

arly co-inciding with themiddles of the joints (see §§ 351 and 352) is so considered. 360.—Case II. TInsymmetrical loading on a Symmetrical Arch(e.gi, arch with live load covering one half-span as in Figs.390 and 391). Here we must evidently use a full forcediagram, and the full elevation of the… … FlQ. 39S. abutment-joint at the end of the span which is the moreheavily-loaded ; in the other abutment-joint take B at theupper limit of the middle third; and take p in the middleof the crown-joint. Then by § 341 draw an equilibriumpolygon (i.e., a linear arch) through these three points forthe…
