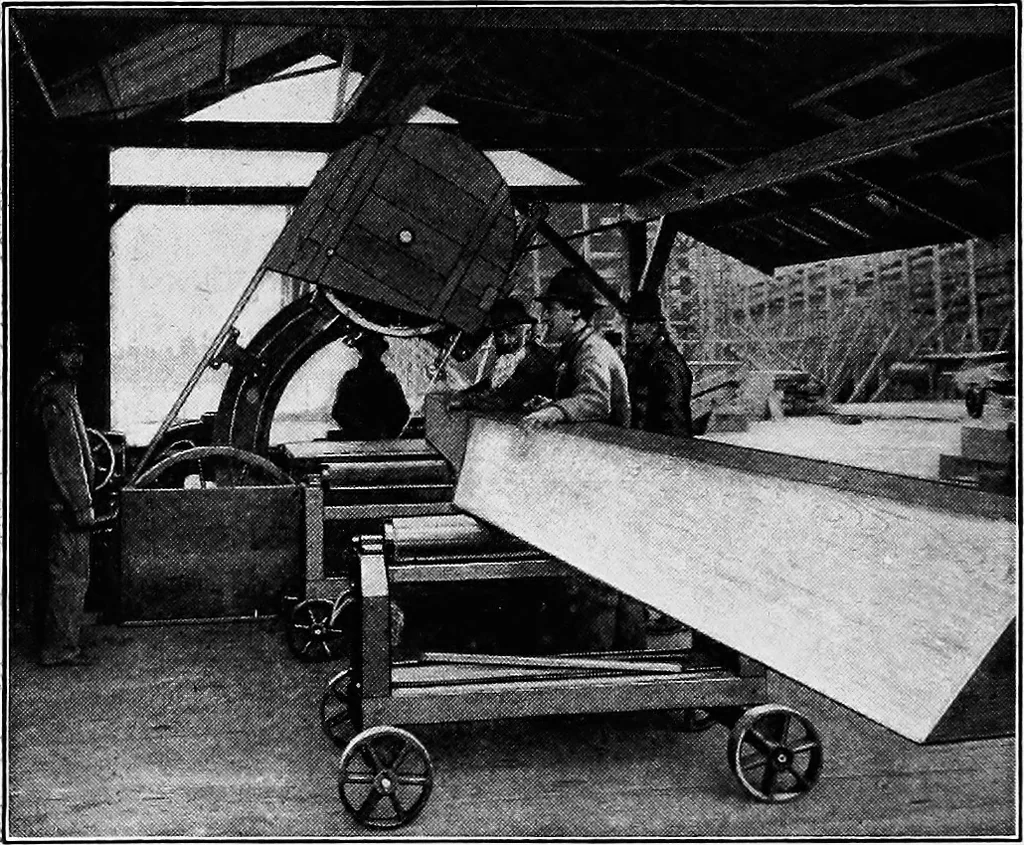

a +-» O hiI a a 106 COURSE IN WOODEN BOAT AND SHIP BUILDING shown in Figure 54, and cut to the required bevelon the band saw. See Figures 55 and 56. Thegauge on the side of the machine registers the angleat which the saw is cutting. The man guiding the stock through the saw … Figure G5.—Beveling Frames on tlie Band Saw. announces the various degrees or bevels as henears the mark on the timber, while the operatorat the Avheel gradually tilts the saw one way or theother, as the case may be, fairing one bevel intothe other as the degrees change. Mill Floor Carriages.—In…
