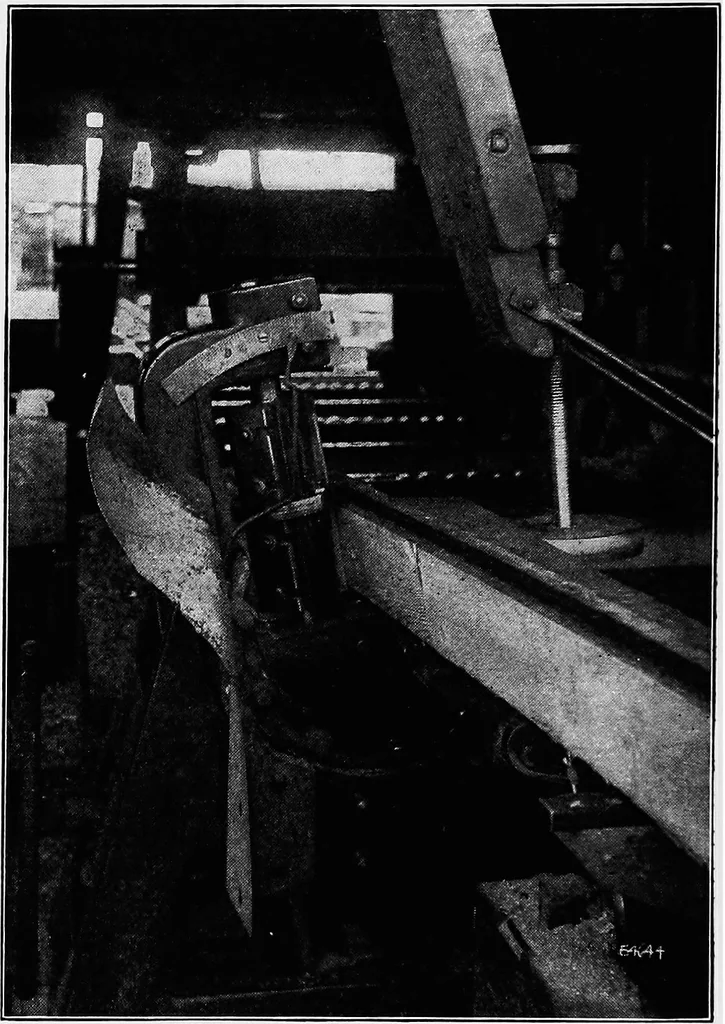

work accomplishedthe carriage was reversed and the machinestopped. Working Rudder Stock.—The working of therudder stock shows another possibility of thismachine. Formerly all the work was performedby hand, while the surfacing of the various partsis now done on the machine. In Figure 66 the rudder… … Figure 61.—Starting a Cut at an Angle of 11 Degrees to the Riglit. MACHINES AND LABOR-SAVING DEVICES 115
