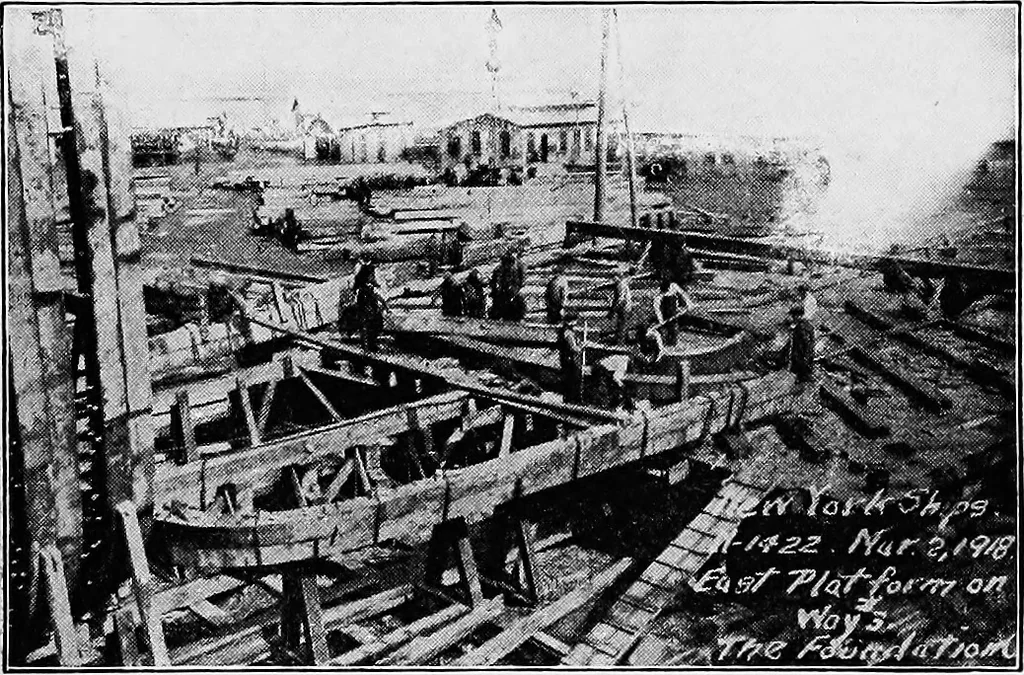

toeither of the three planes of reference. It is of great economical value and highly im-portant that the timber frames be all square ornearly square sections, thus eliminating greatbevels. Most of the bevels in wooden ship timbers RAISING THE FRAMES 129 do not exceed 10 degrees, very few exceeding… … Figure 74.—Frames in Position Ready to Raise. the half frame, through the deadwood, and setup over clinch rings. The cant frames are built up in a similar mannerto the main frames. Figures 78 and 79 show theheels of the cant frames fore and aft of the sameship. In FigTire 79 the flooring is being…
