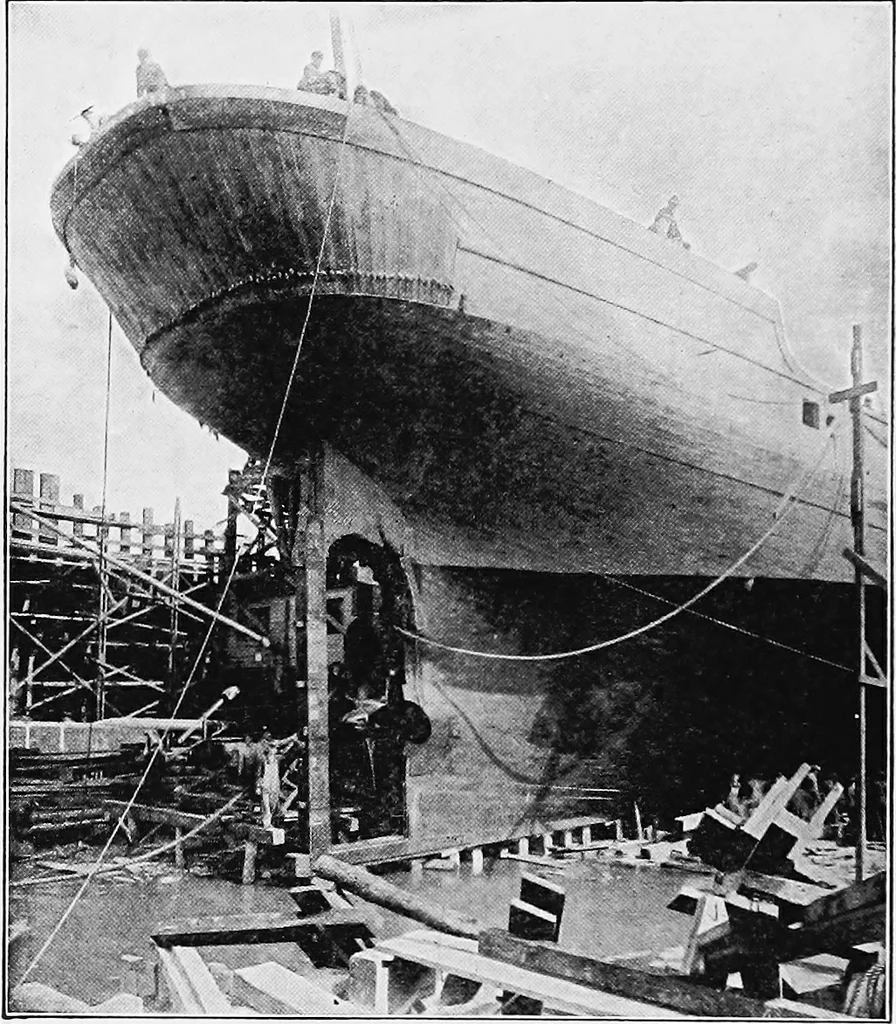

146 COURSE IN WOODEN UOAT AND SHIP BUILDING bring the planking up tight against the frames.These hold it in position until fastened, when thewedges are removed. The garboard strake is fastened to each frame … Figure 91.—Stern of Ship, Showing Vertical Planking. with four 1-inch bolts 18 inches long, and edgebolted to the keel with 1 by 36-inch bolts everysecond frame spacing. PLANKING AND FINISHING 147 tVir t^r-^
