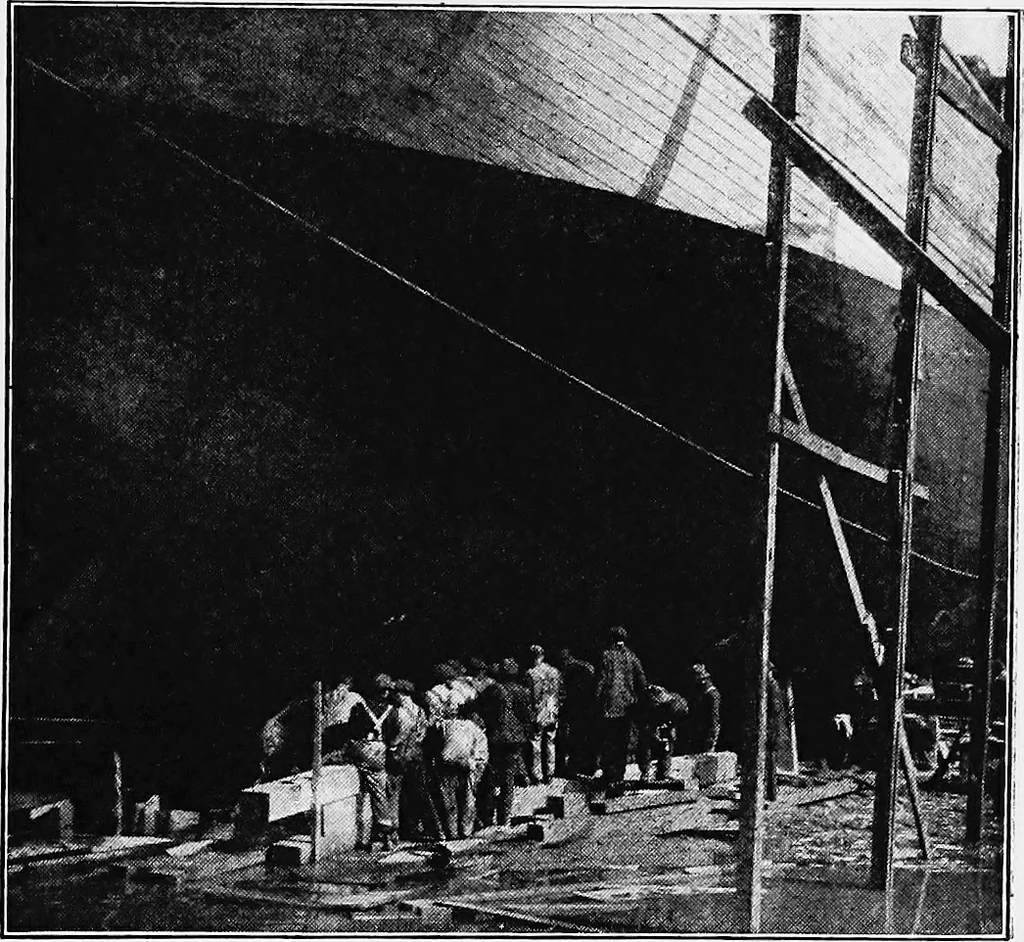

Figure 93.—View of Framing Platform. he countersunk and the holes plugged, with thegrain of the wood running in the same directionas the grain of the wood in the planking. In addition to the bolts the wide planks have PLANKING AND FINISHING 149 four treenails in each frame and the narrow plankstwo… … Figure 94.—Ready to Launch. The wedges are placed across the grain of thewood through which they are driven. The holesfor the treenails are bored with long, power, shipauger bits. The head of each treenail is protected with an 150 COURSE IN WOODEN DOAT AND SHIP BUILDING
