A practical course in wooden boat and ship building, the fundamental principles and practical methods described in detail, especially written for carpenters and other woodworkers who desire to engage in boat or ship building, and as a textbook for schools (1918)

Van Gaasbeek, Richard Montgomery, 1877- · Chicago, F. J. Drake & company · leaf 166

An illustration from A practical course in wooden boat and ship building, the fundamental principles and practical methods described in detail, especially written for carpenters and other woodworkers who desire to engage in boat or ship building, and as a textbook for schools, 1918, leaf 166

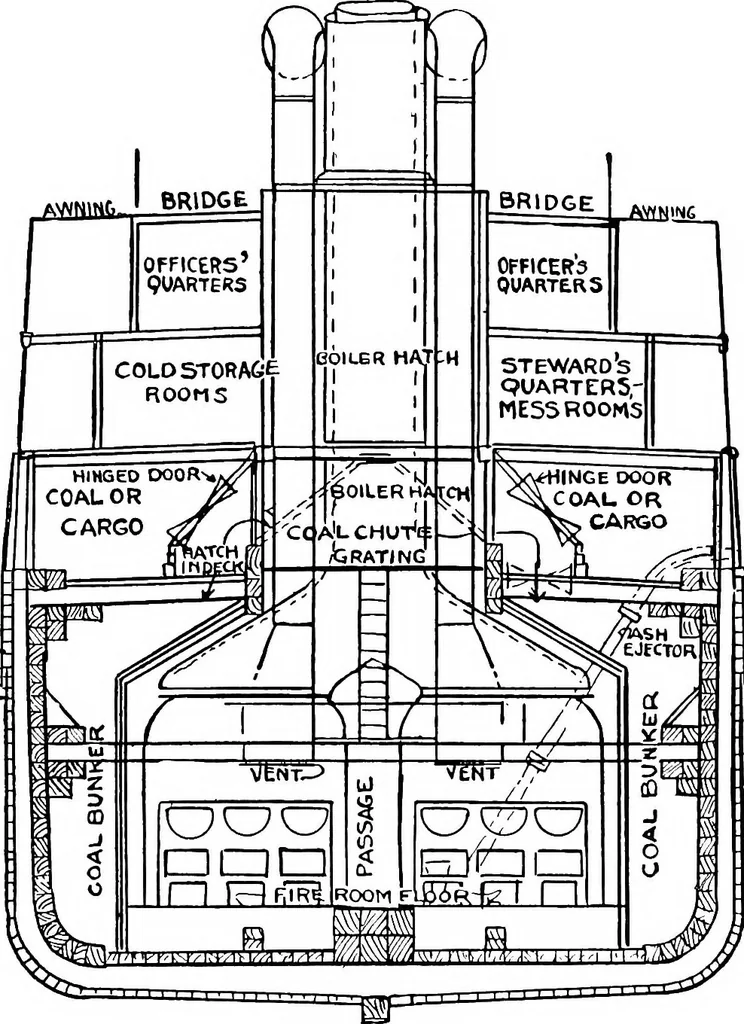

m. iiuv//,riii.inmii; Figure 109.—Section Through Engine Room, Loolsing Forward. PLANKING A\D FINISHING 163 … Figure 110.—Section Througli Boiler Room, Looking Aft. 164 COURSE IN WOODEN BOAT AND SHIP BUILDING gating bridge, and Figure 103 the top of thewheel house. The layout of the boat deck is seenin Fig. 104, and the top of the gun house in Figure105. Figure 106 shows the poop-deck arrangement,and…
