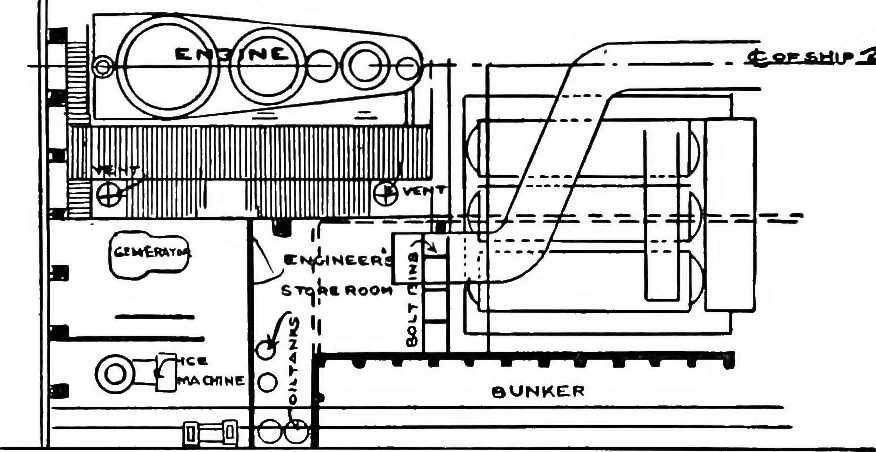

Figure 110.—Section Througli Boiler Room, Looking Aft. 164 COURSE IN WOODEN BOAT AND SHIP BUILDING gating bridge, and Figure 103 the top of thewheel house. The layout of the boat deck is seenin Fig. 104, and the top of the gun house in Figure105. Figure 106 shows the poop-deck arrangement,and… … Figure 111.—Plan View at Dynamo Flat ani.1 Engineers Store Room. deck plan appears in Figure 108. Figure 109shows a section through the engine room, lookingforward, and Figure 110 a section through theboiler room, looking aft. Figure 111 is a planview at the dynamo flat and the engineers…
