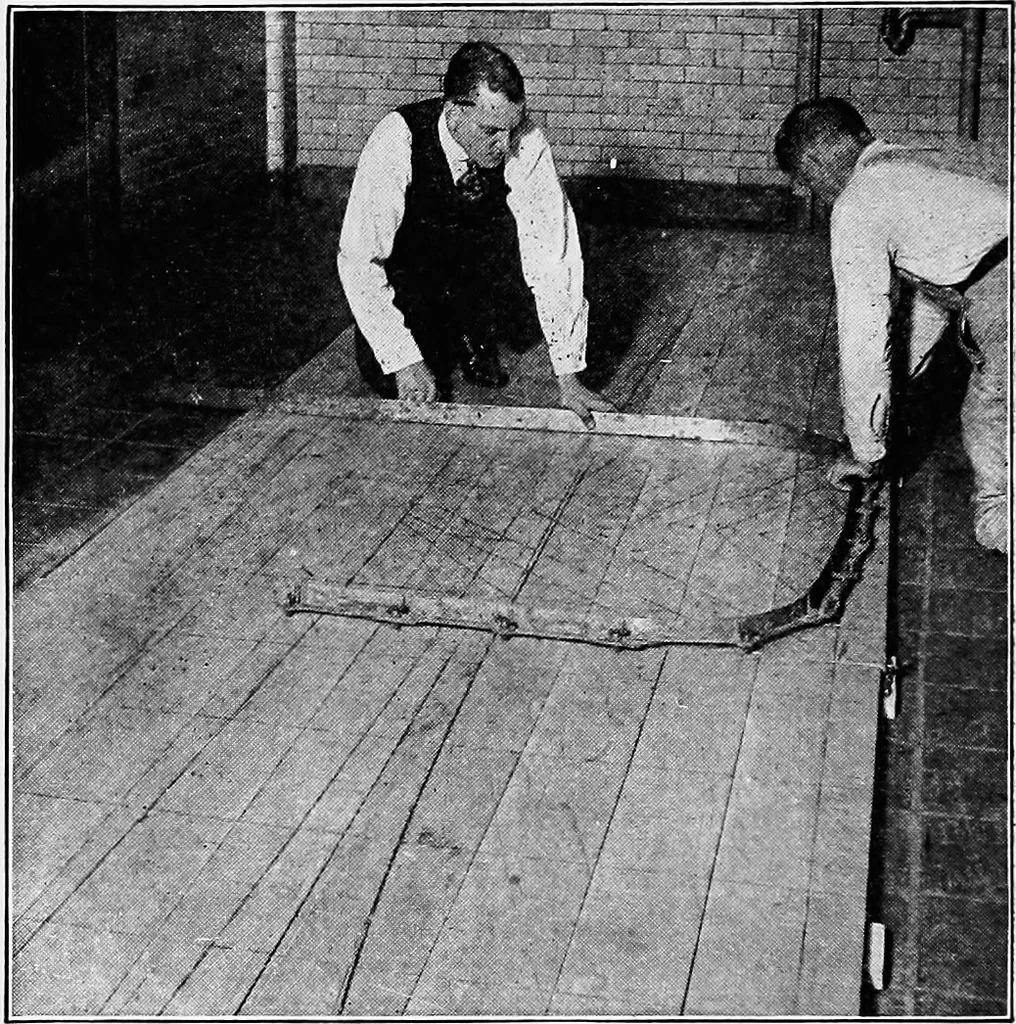

u:^ w r^j? <9 Figure 17.—Futtock Moulds Aft. u COURSE IN WOODEN BOAT AND SHIP BUILDING plan, Figure 3. These lines give the outside linesof the frames. The width of the frames will de-pend largely upon the size and the demands to bemade upon the vessel. … Figure IS.—Picking Up Lines from Mould Loft Floor with a FlexibleSteel Template. Cut the moulds full of the line to allow for fair-ing up, finishing the mould by hand. Each mouldis numbered so it can readily be placed in its properlocation. FUTTOCKS AND FRAMES 45 i
