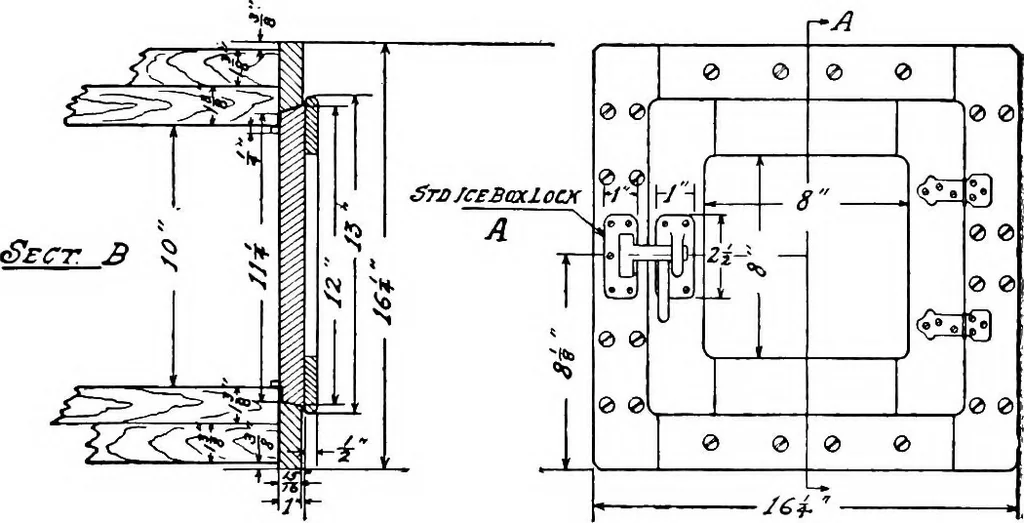

and planking to be bent. Details of a steam box are shown in Figures 19,.20,21 and 22. The dimensions can be varied, eitherenlarged or made smaller, to meet a special need. FUTTOCKS AND FRAMES 47 The box is made of cypress with butted joints andcalked seams. Cleats continue around all foursides,… … Figure 21.—Detail of Door of Steam Box. vent pipe takes off the surplus steam and leads itout doors. At the far end there is an outlet for thecondensation, leading to a water seal trap, shownin Figure 22. The water lying in the trap preventsthe steam from escaping. The condensation canbe drained…
