Problems in physics. Derived from military situations and experience (1919)
United States. War Dept. Committee on education and special training, Dodge, Homer Levi, 1887- · [Washington? · leaf 47

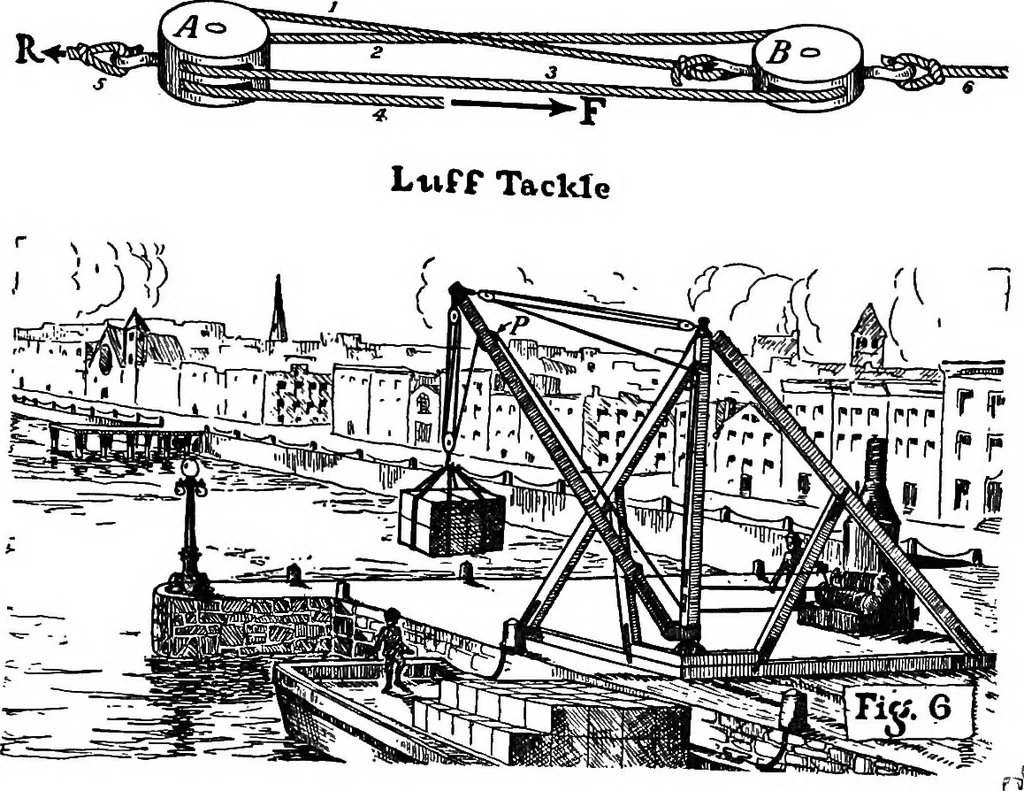

e for the job. Is this the only rigging which couldbe used advantageously? BLOCKS AND TACKLE 39 20. The men represented in Figure 5 are each exerting a force of50 pounds. Neglect friction and find: (a) The force which the snub must stand. (b) The tension in each rope. (c) The force acting on the… … LUFF TACKLE 21. Show that two different mechanical advantages are possible with the Luff Tackle. What is their ratio? 22. Does the pulley P aid in securing the mechanical advantage attained in the rigging shown in Figure 6? 23. An imloading derrick is to be hastily constructed and the blocks and…
Physics · Military art and science
