Problems in physics. Derived from military situations and experience (1919)
United States. War Dept. Committee on education and special training, Dodge, Homer Levi, 1887- · [Washington? · leaf 59

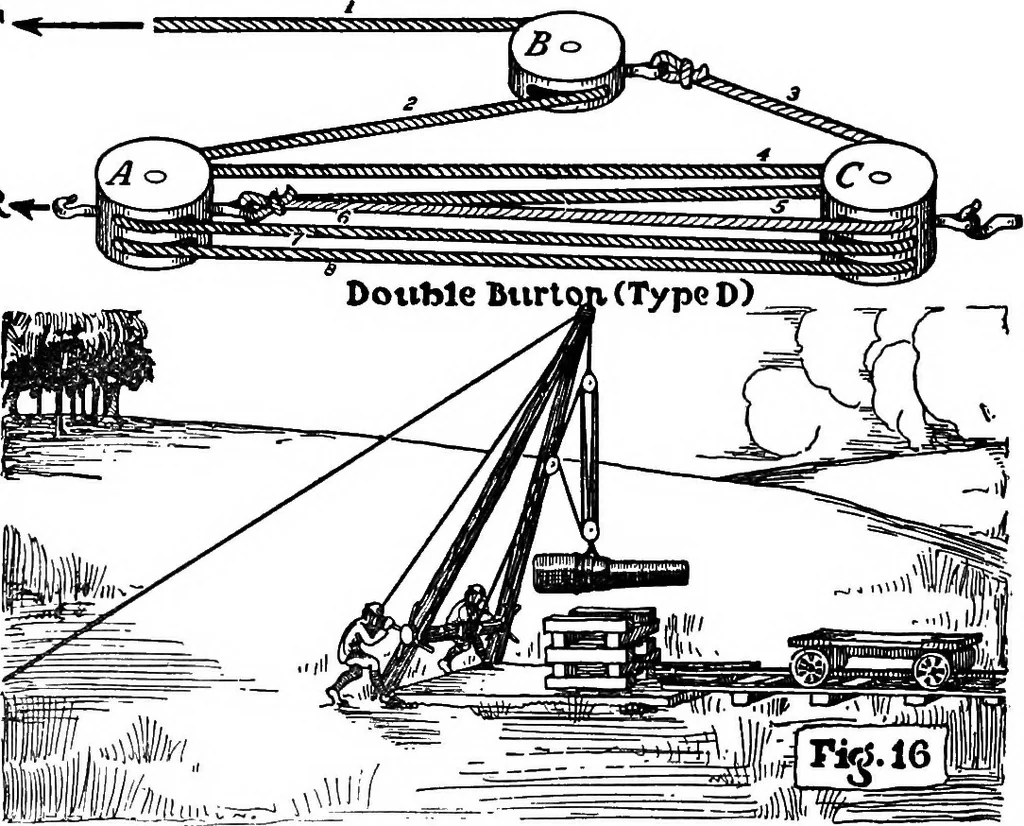

gle and two double-blocks. (a) Sketch the rigging that will give maximum distancewithout overhauling. (b) Put this same equipment into a rigging that willgive a mechanical advantage of six and require no over-hauling. (c) Rig as a Double Burton to enable the load to bemoved with the fewest number… … DOUBLE BURTON, TYPE D. 74. What is the mechanical advantage of the Double Burton shown in Figure 16? 75. If the blocks are separated ten feet, how high can the cannon be raised before overhauling will be necessary? 76. If there were sufficient heavy rope to rig for maximum mechanical advantage, how…
Physics · Military art and science
