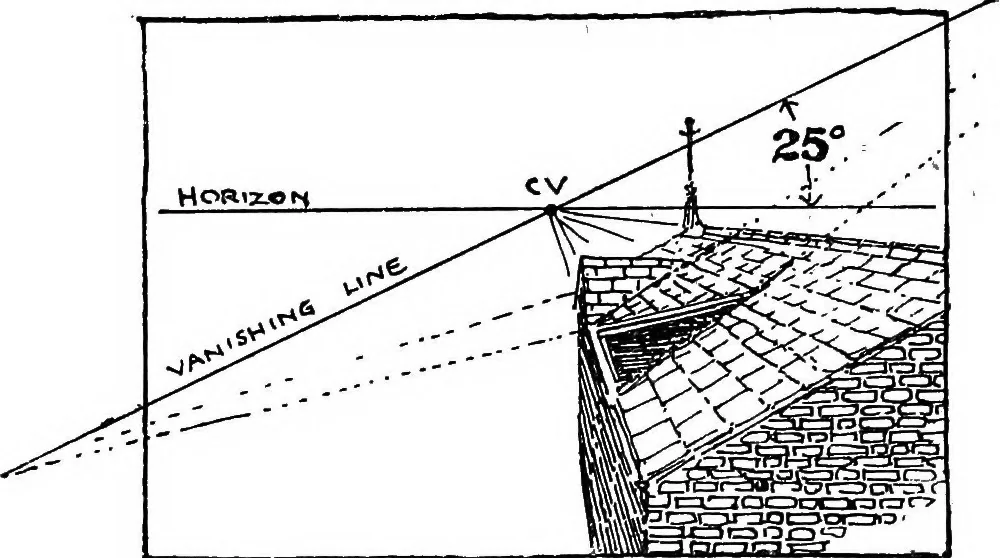

ertical Planes,Perpendicular to the Picture. These also have been sufficiently treated. The ruleis— BroM through G.V. a line down the paper at rightangles to the horizon if that he previously found. 34. To find the V.L. of Inclined Planes,Perpendicular to the Picture. These planes are usually… … Fig. 65,—VaDishing line of inclined planes making 25° with the grotind,and being perpendicular to the picture. Br aw through the C.V. a line at the same angle to thehorizon as the plane is declared to make with tlie horizontalor growid-plane. 35. Planes Parallel to the Picture. These have no…
