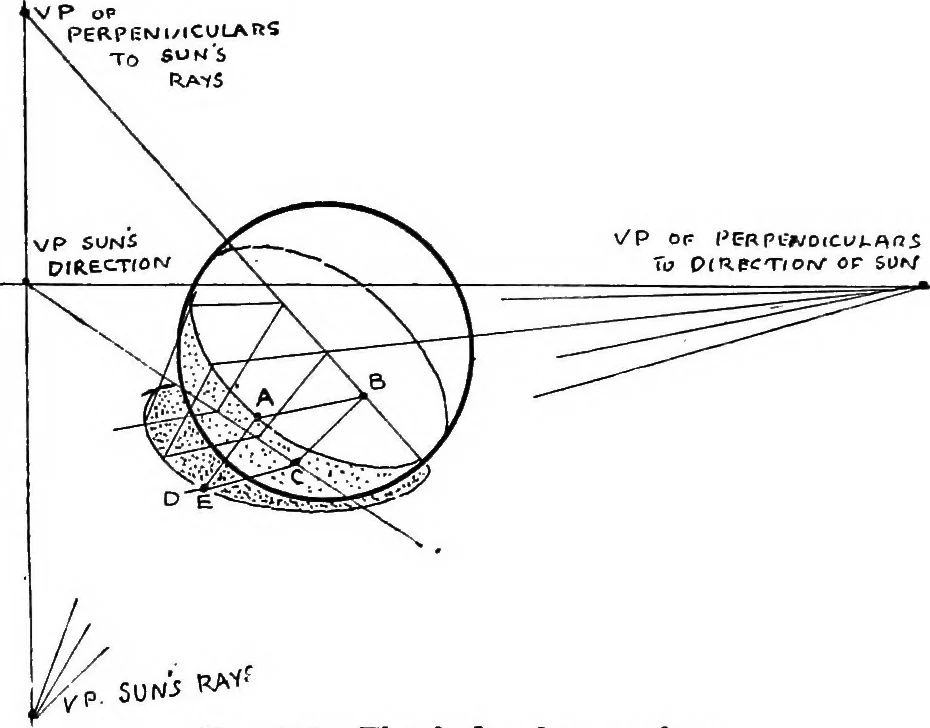

t A; draw AB and then EC toV.P. of sun. C is on the line from V.P. of suns directionto X. From C draw CD, and from A to sun to find E—a point in the shadow. In Fig. 127 AB and AC are two edges of a squarewhich throws a shadow on the sphere. Either on theground draw a plan of the sphere, or through… … Fig 126.—The shadow from a sphere. point A: drop A to the ground, to a; draw aK to V.P.of suns direction, not to V.P. of AC; raise KM, project MN
