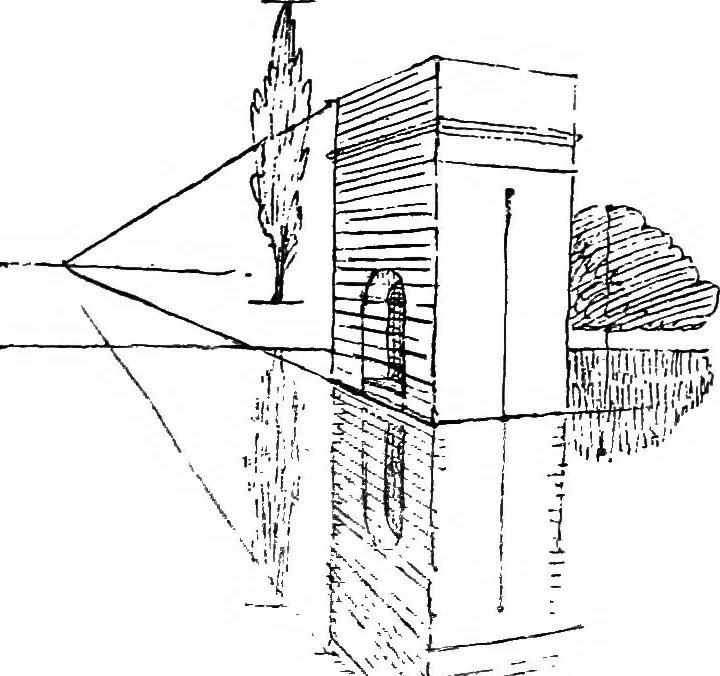

foot on the level of the mirror (let ussuppose). Vertically down from the foot of the tree wecan put the height of the tree, and so get its reflection. Reflections 175 This is done throughout Fig. 130. Care must, of course,always be taken to reverse the measurement from thelevel of the mirror and… … Fig. 130.—Vertical heights reflected. as cut away to show the foot more clearly. In Fig. 132the reflection of a bird is shown. This diagram showsthe working in geometric form. The sloping roof vanishesto A.V.P. The V.P. of reflection is as far below thehorizon as A.V.P. is above it. The two most…
