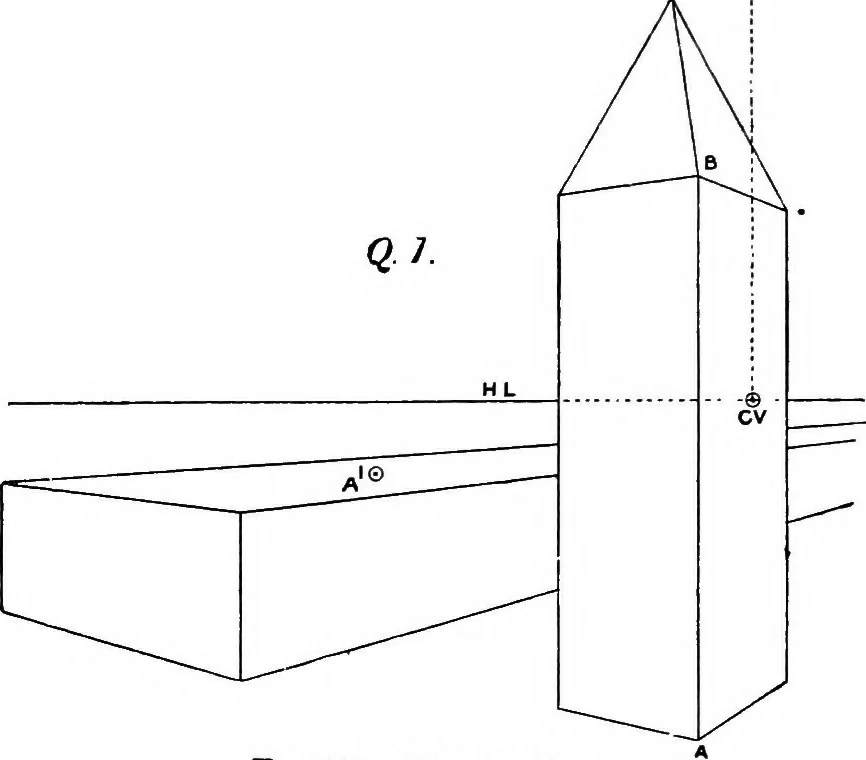

d4i inches from the right-hand edge of ike paper. We must look in all cases to the. completion of thescaffolding of the problem; that is to say, we must findhorizon, eye, ground or picture line, two V.P.s, and theirtwo M.P.s. The horizon is given. The eye is given. The ground-line we draw through… … Fio. 137.—Diagram Q. 1. the nearest comer of the raised plane beyond. If theground-line were through the lowest (nearest) cornerof the raised plane, its distance below the H.L. wouldbe the same in fact, but less ia the drawing. Hence the 186 Perspective length in feet of the P.Y.E. (O.V. to eye)…
