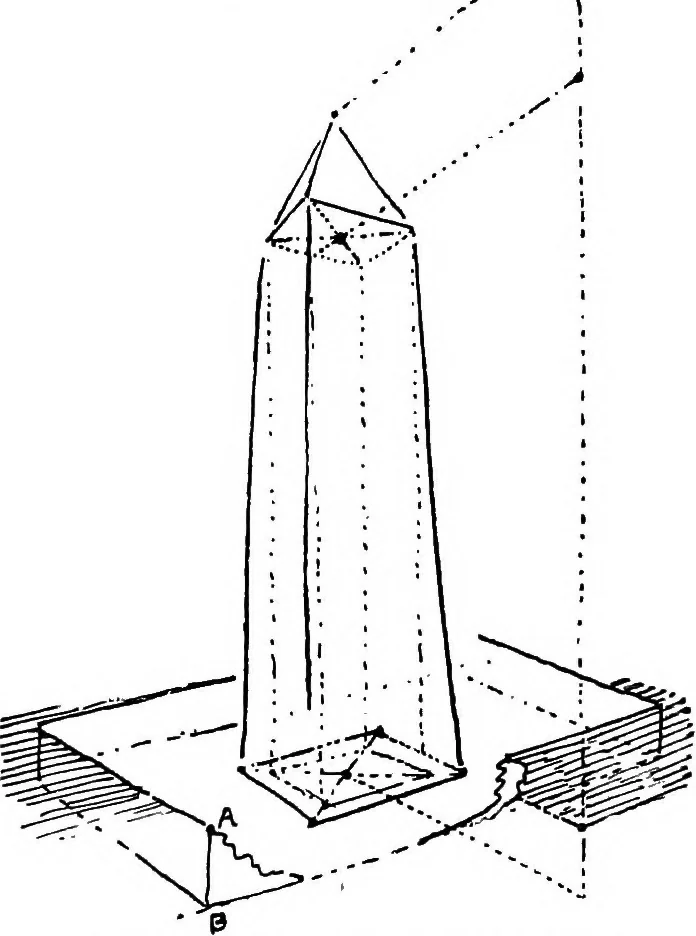

topbeing parallel to the horizontal edges of the tank. The top 192 Perspective of the shaft is the base of a pyramid 2 feet high. The eyeis 12 feet from the picture and 7 feet above the grovmd. Scale, i an inch to afoot. (18 marks.) The horizon must he drawn across the short way of thepaper, 5… … Pig. 146.—The subject of Question 2. and especially should this be done when no diagramsaccompany the question. The subject of Question 2 is somewhat that shown in Solving Problems 193 Fig. 146. It is better, in making these sketches, not toattempt delicacies of foreshortening, but rather to…
