Hatton, Richard G · London, Chapman & Hall ld. · leaf 233

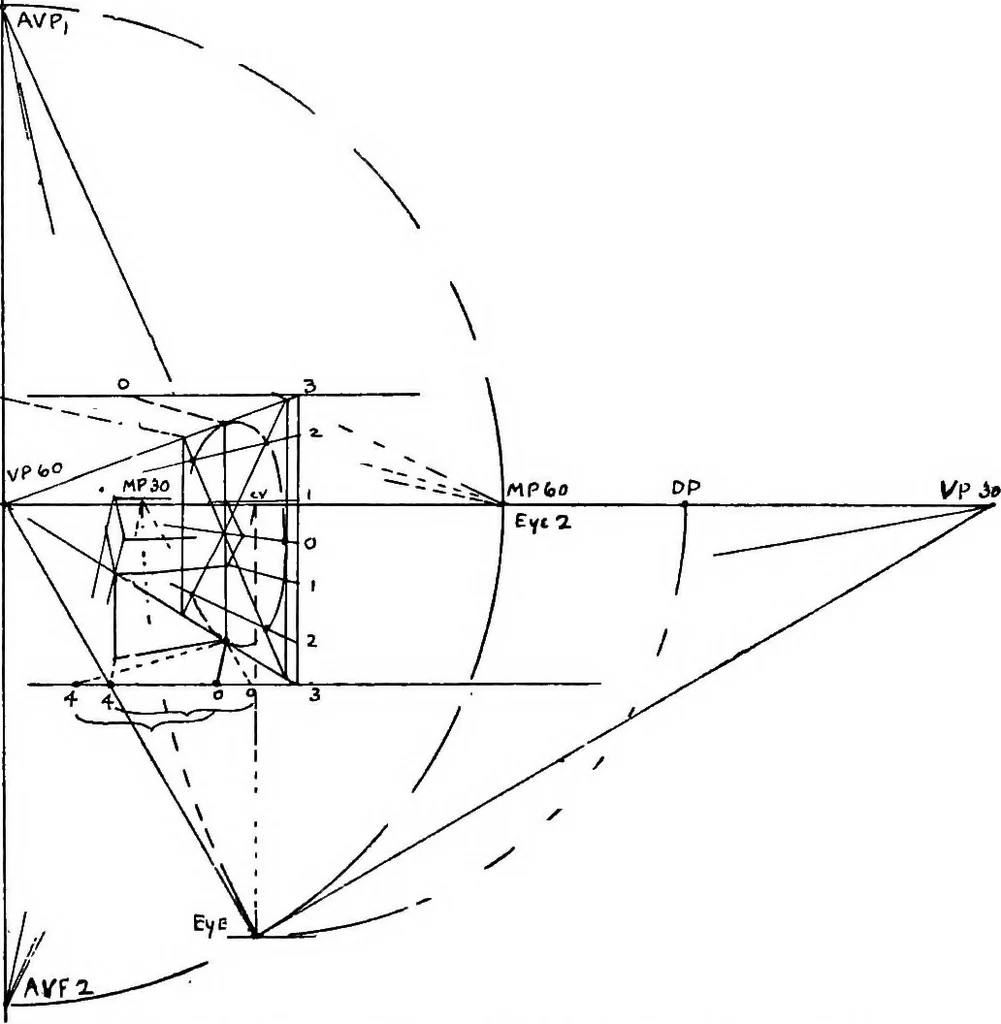

tal vanishing points occur immediately overand under V.P. 60. They are found by first drawing 198 Perspective a vertical V.L. (for these lines are all in vertical planes)through V.P. 60. Next the position of the eye inrelation to this V.L. is found; it coincides with M.P. 60.Upward and downward… … Fig. 151.—The problem worked by inclined perspective,worked. If we get first the long line through A, and Solving Problems 199 which contains the base of oui square, the long lineat the top, which is 8 feet above the ground, and aline through the centre, all three vanishing to V.P. 60,we shall find…
Perspective · Drawing
