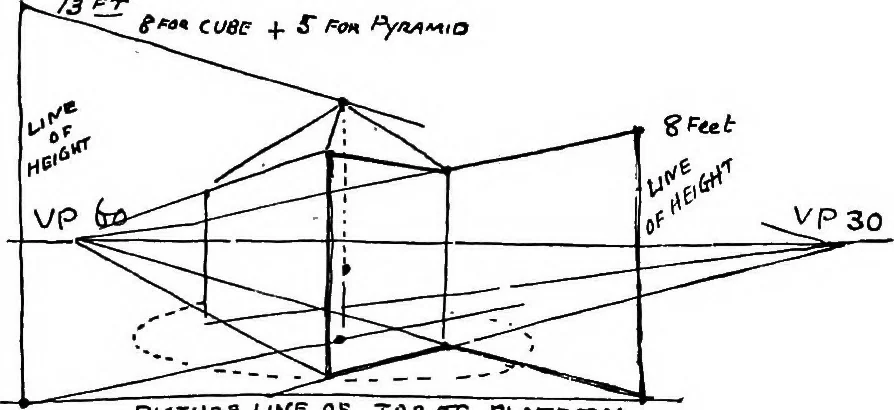

the top of theplatform; so the measurement will be made on thepicture-line 4 feet below the eye. We proceed thus:We draw from V.P. 30 on right a line through thecentre K. Then we measure along the line from K,KE and KD. To do this we bring a line from M.P, 30down to the P.L., and so obtain point K… … yP30 Fio. 181—The cnbe and pyramid raised. some little way through D and E; and along the onethrough D we measure DF and DGr, using M.P. 60. Fand G found, lines from them to V.P. 30 will completethe square. To raise the cube to its proper height, and to raiseaboTe it the apex of the pyramid, is the…
