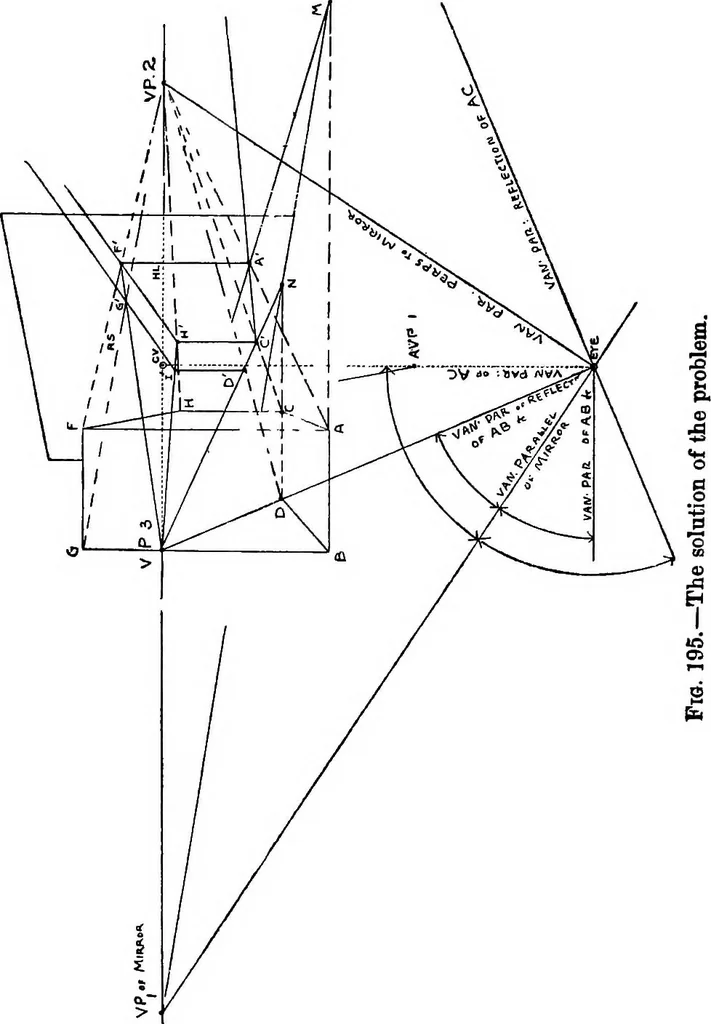

Fis. 194.—The reflnction of an inclined line. of a vertical plane, containing AC, HF (see Fig. 195,the solution). In the object the top descends as itrecedes; that is, GTF is nearer than IH, and IH is thelower. In the image, however, IH is still the lower,but it is the nearer, and so the top… … our getting these points, but if it did we should proceedas in Fig. 194. Here PH is the declining line vanishing Solving Problems 255 to A.V.P.I. We have to find at what angle it is descend-ing. Eye 2 (position of DP) is the eye for the planethrough C.V., and we readily find the angle of…
