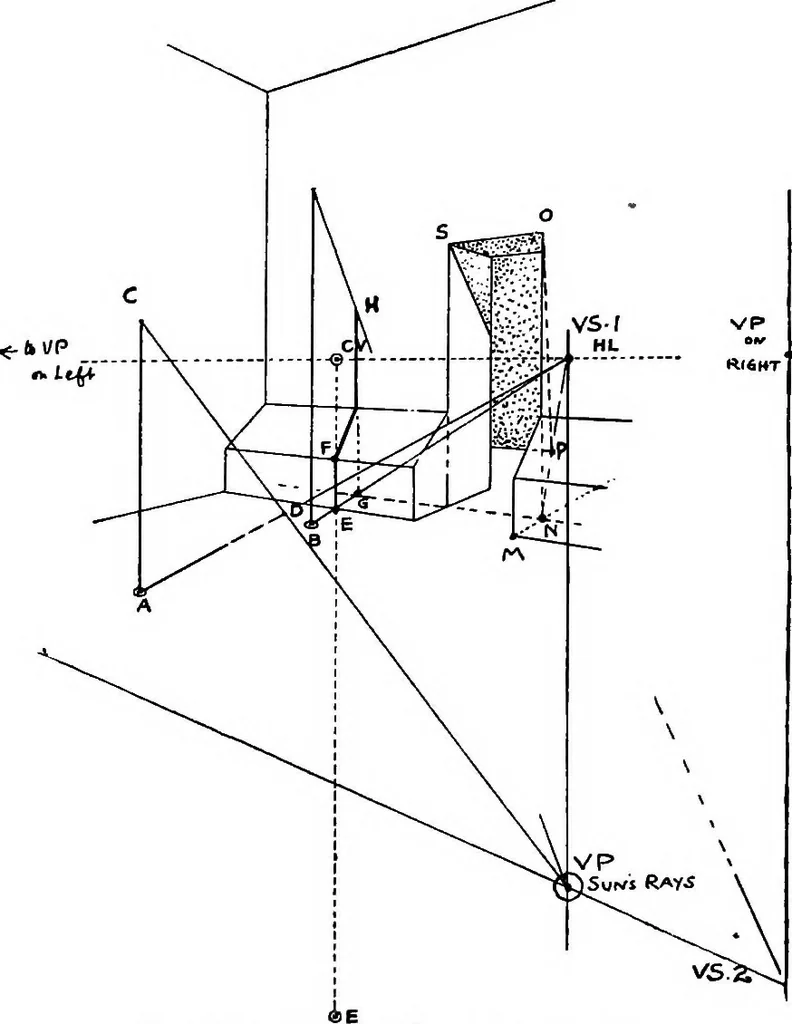

&B Fia. 207.—Diagram Q. 12. centre of vision, and distance of the eye from the pictureare given. Find the vanishing point of the swns rays anddraw the shadows of line B and of the doorway. (15 marks.) 266 Perspective Thds drcmmg will occupy a spaoe 15 inches wide and10 J inches high, in the… … Fia. 208.—The solution of the question. In this problem the shadow of the jamb of thedoorway is hidden, and the shadow of only the top lineof the doorway is seen. RULES For Paballbl Peespective. Horizon (Hor.). Drawn with T square anywhere. C.V. Marked anywhere on horizon. Bye. Distance of…
