Radford's portfolio of details of building construction; a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale. Complete details for every style of interior trim, including special built-in features (1911)

Radford, William A., 1865- ed, Johnson, Bernard L., joint ed, Rawson, Charles P., joint ed · Chicago, Ill., The Radford Architectural Company · leaf 47

An illustration from Radford's portfolio of details of building construction; a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale. Complete details for every style of interior trim, including special built-in features, 1911, leaf 47

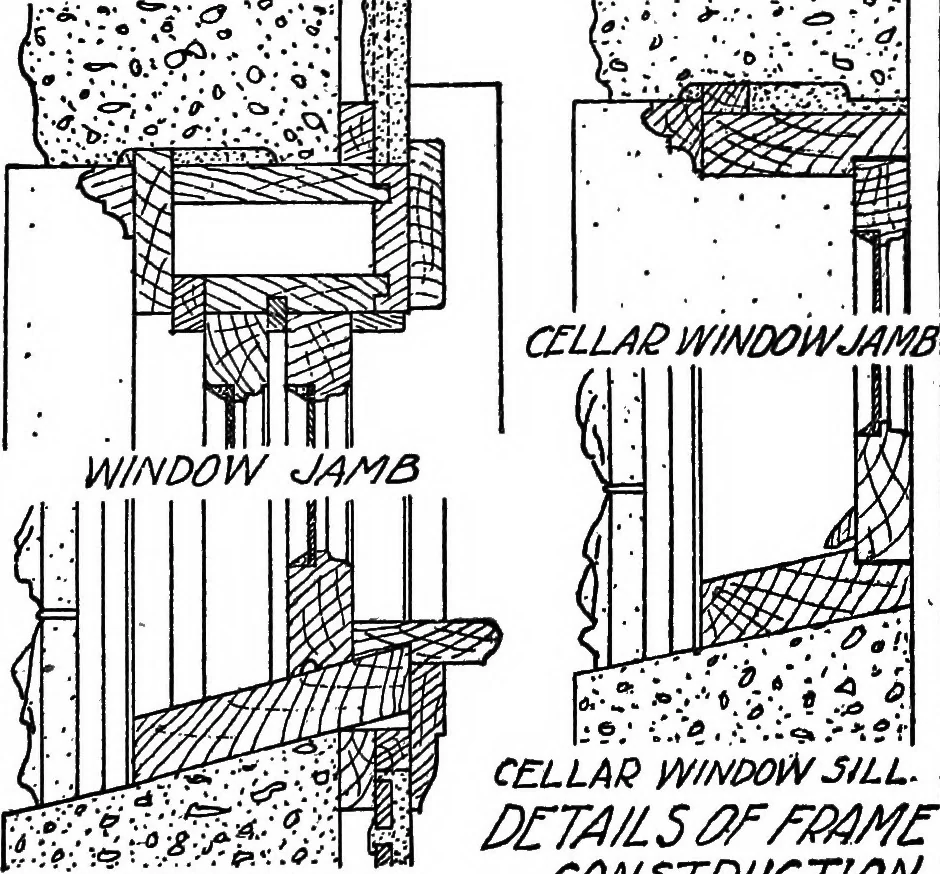

l/fZ/A^f^Ay 31 LL. C£LLAQ W/Nt)Oi^JJLL C0N5W(/CT/m WINDOWS AND DOOE FRAMING DETAILS. WALL SECTION SHOWING JOIST SEATING AT IST AND 2nDFLOORS AND PLATE. PLATE 36—CONCRETE BLOCK CONSTRUCTION Complete details of all wood framing occurring in connection with block work, both ordinary block construction…
