Radford's portfolio of details of building construction; a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale. Complete details for every style of interior trim, including special built-in features (1911)
Radford, William A., 1865- ed, Johnson, Bernard L., joint ed, Rawson, Charles P., joint ed · Chicago, Ill., The Radford Architectural Company · leaf 66

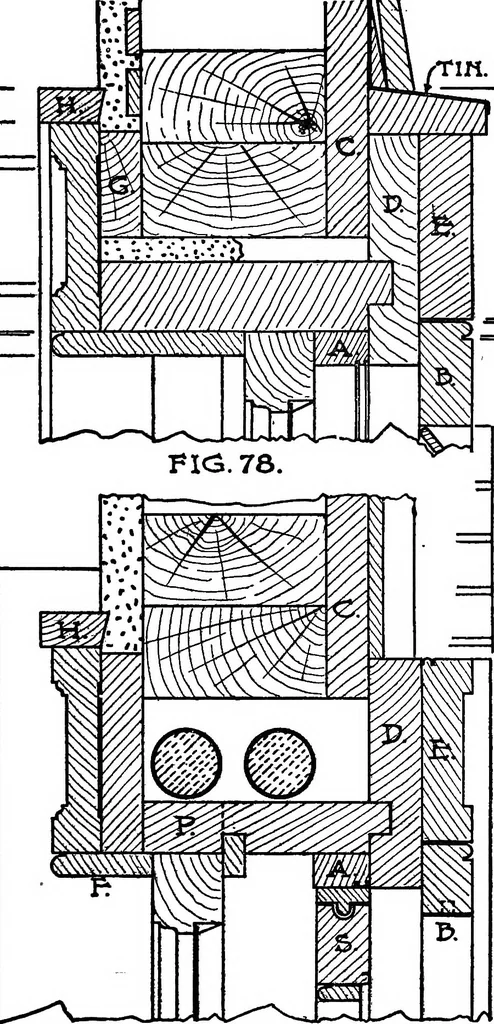

ATE 53—DOUBLE HUNG WINDOW WITH SCREEN Construction in frame wall. Fig. 74, section casing. Fig. 76, section through sill. Note that through window head showing use of grounds both sill and sub-sill are used in place of the (G). Note also tin flashing over window. Fig. single sill, common in cheaper… … Fl<3. 79. PIG. ei.
