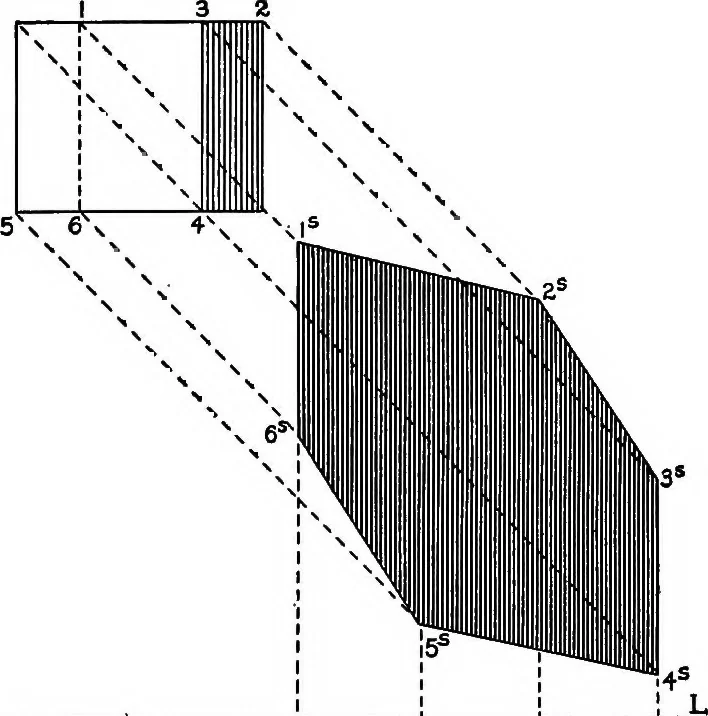

ws of Irregular Figures (Fig,. 25).—The shadows of plane figures bounded by curved or irregularlines are, in general, obtained by getting the shadows of a certain number of points on their perimeter andconnecting them by curved or irregular lines analogous to those of the figure. If the figure is a… … THE SHADOWS OF RECTILINEAR SOLIDS OR POLYHEDRA 39. Shade and Line of Shade.—The faces of a polyhedron are planes, and the edges by which they areseparated are straight lines. The Line of Shade, separating the illuminated portion of the surface from theportion in shade, is made up of the successive…
