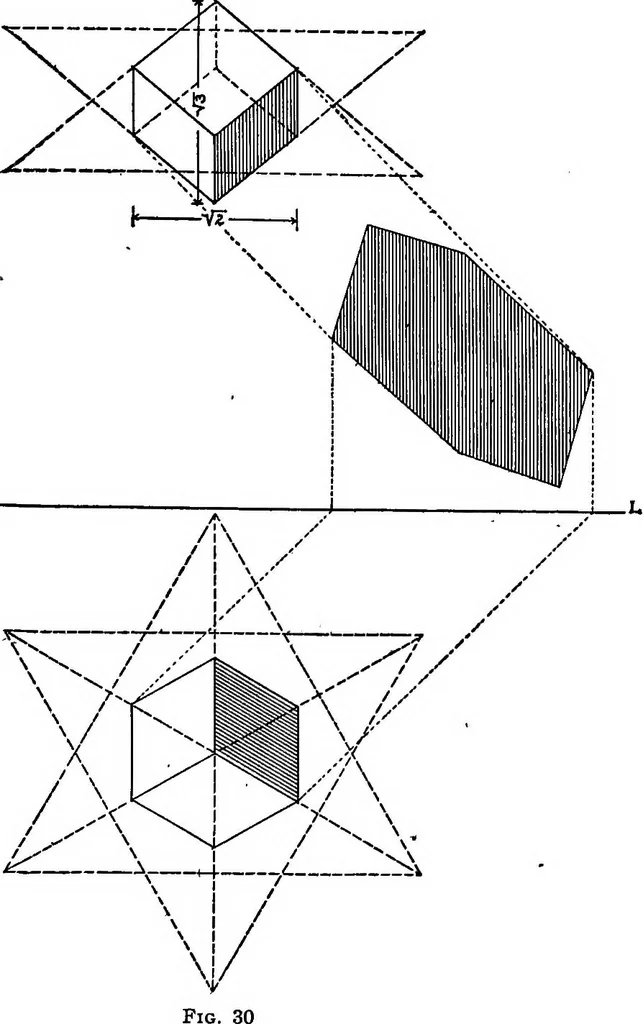

s in Fig 29Its projections present a somewhat unusual aspect. The horizontal projection is a regular hexagon thesides of which are equal to Vf, which is also the radius of the circumscribing circle, the edge of the cube bein?taken as 1. The radius of the inscribed circle is V| = i V2. One vertical…
