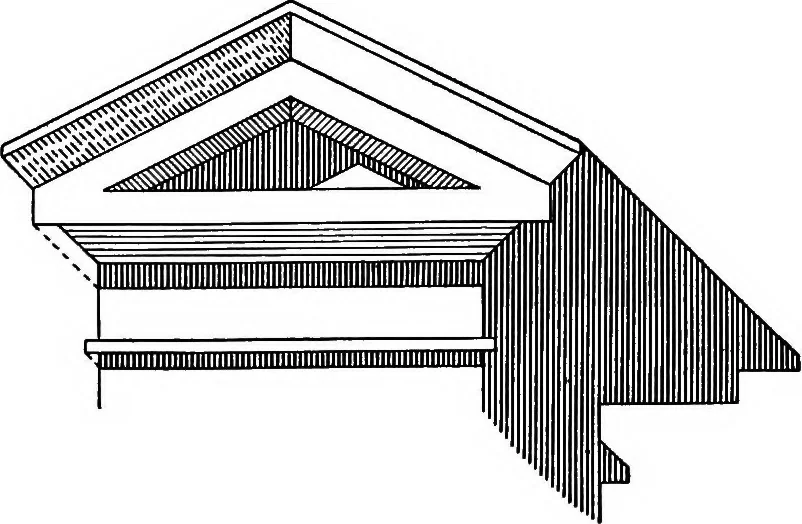

Ex. XXX A Ex. XXXI A Ex. XXXII1 on the line s p which is the shadow cast upon the wall by the edge of the pyramid v,p, and the line w,w^throws its shadow on t, t, parallel to ., 5,. intersecting the base of the pyramid at ^3, which is the shadow ofthe point w upon the line w, w„ produced. The… … Ex. XXXV A Example XXXIIJ. A Gable in Plan and Elevation.—The simplest form of roof has two slopes -whichdescend from a horizontal ridge to horizontal eaves, and terminate in a gable, which generally projectsbeyond the wall at the end just as much as the eaves do at the sides. The underside of the…
