Young, George, jr, Baxter, Hubert Eugene, joint author · New York, Macmillan · leaf 120

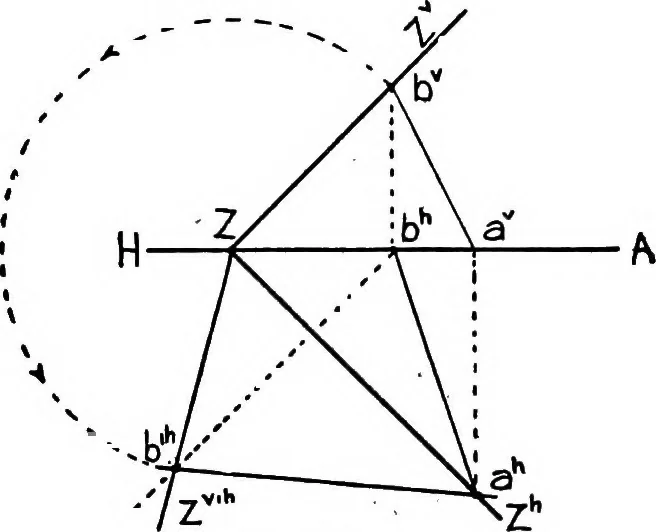

o ZZ*, and that the dis-tance Zb is equal to Zb. - It should be noted particularly that the line ah, its H pro-jection, aft, the rabattement, afc*, and the B. trace of the plane,ZZ, all pass through the point a*, which is the U trace of thegiven line. In Fig. 103, the above operation is repeated in… … Fig. 103 intersect is the required point b^. The point just determinedmay be connected with a*, giving the rabattement of the lineoft; or with Z, giving tBe rabattement of the V trace of Z. It should be noted that the rabattement of all points on Z,and within the first quadrant, will lie within the…
Geometry, Descriptive
