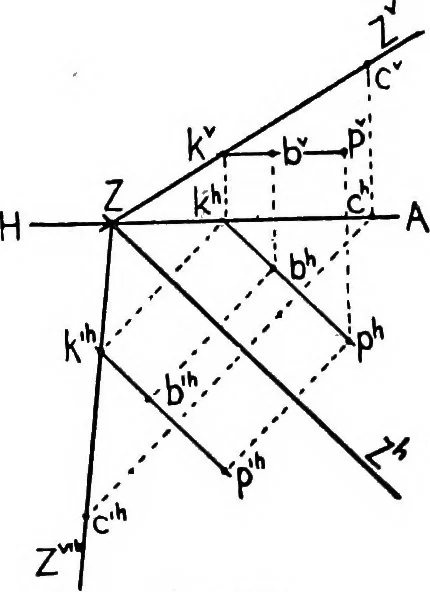

he H projection of the point will be somewhereon that line. Draw such a line through A;*. Its intersectionwith HA will determine A:*, and a vertical line drawn from fc*to ZZ will give k. Through k and k draw the projections of the auxiliary line,iV and kp. The required projections of the point 6… … Fio. 107 106 DESCRIPTIVE GEOMETRY [VI, §96 96. To Find the Projections of a Given Figure When it Liesin a Given Plane. This problem requires, merely an extensionand application of the principles of § 95, and constitutes thegeneral case of the problem stated in § 46. In Fig. 108, let the plane Z be…
