Young, George, jr, Baxter, Hubert Eugene, joint author · New York, Macmillan · leaf 243

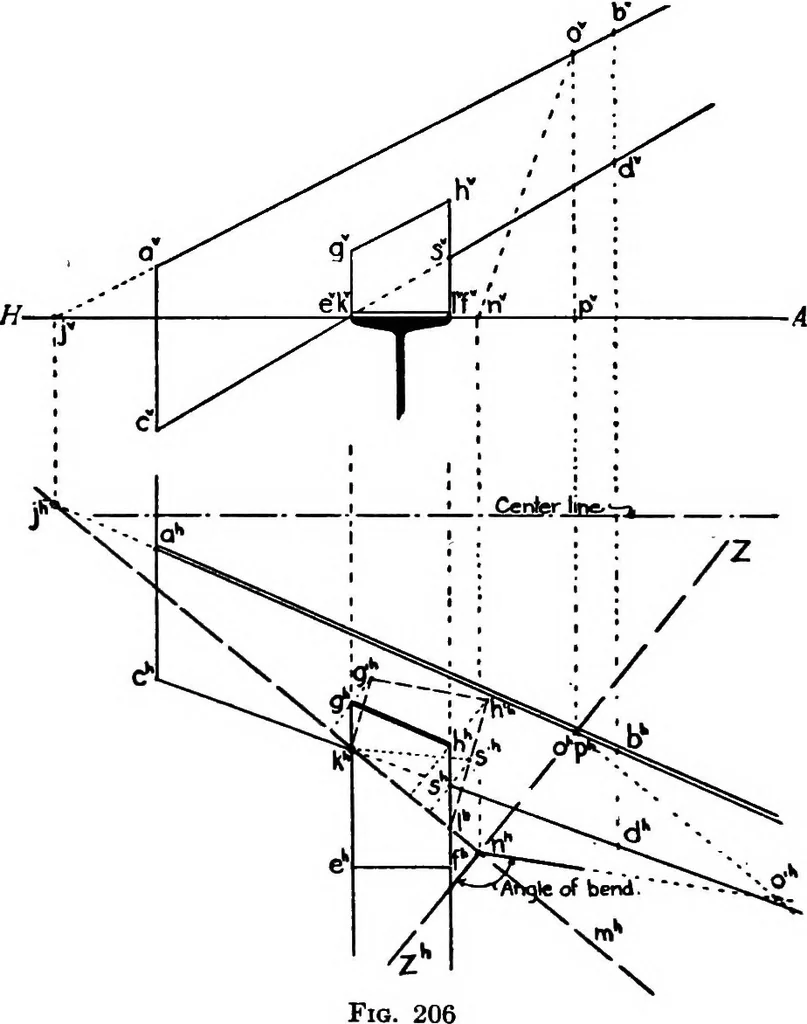

Fig. 205 position of the chute and the beam, it is required to determinethe developed pattern of the clip, and the angle of the bend in it. 224 DESCRIPTIVE GEOMETRY [X, § 190 In Fig. 206, that part of the chute on which the clip is to befitted is redrawn at large scale, in plan and elevation. Let… … flanges. The lines eg and fh are established on this basis, thelengths being taken at any reasonable amount, and gh beingmade parallel to ab. The projections of the bottom face ofthe clip are now established.The lower face of the clip is to coincide with the side of the X, § 190] APPLICATIONS OF…
Geometry, Descriptive
