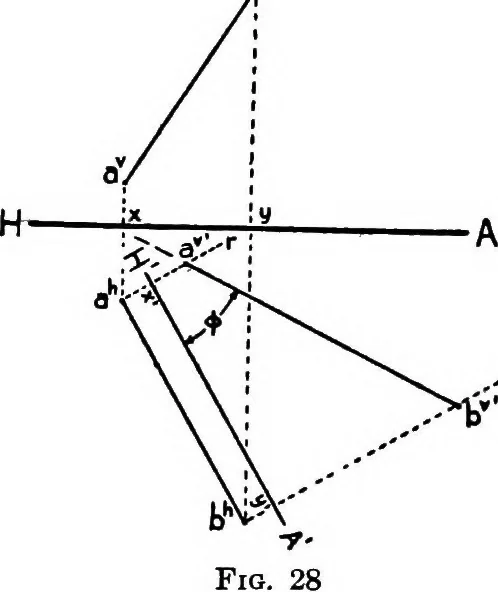

nclination to H, <i>, asrequired. Since three planes of projection are used in the operation,three projections result. Two are elevations and one is a plan.The plan is common to the two elevations. The process of mak-ing the new projection is sometimes more easily visualized ifthe student… … 32 DESCRIPTIVE GEOMETRY [HI, § 27 length and the angle of inclination to V. In this case the newplane must be taken perpendicular to V and parallel to the given line, so as to show the true anglewith V. Of course the true lengthsas determined in Figs. 28 and 29should agree. 28. Comparison of the…
