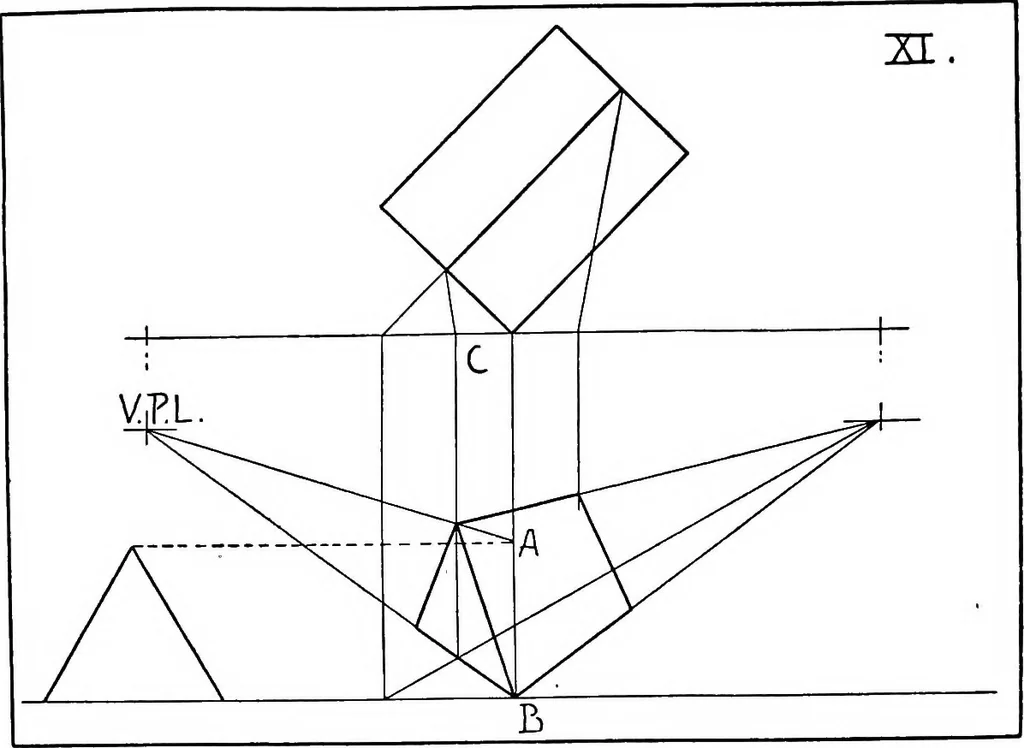

points are projected) the pointmarked new C. V. is found. This point is the V. P. of the system ofwhich lines A-D and B-C are two elements. The perspective of the square in this problem can be drawn in theusual manner, or by the use of diagonals. As diagonal A-C makes anangle to the right of 45°,…
Perspective
