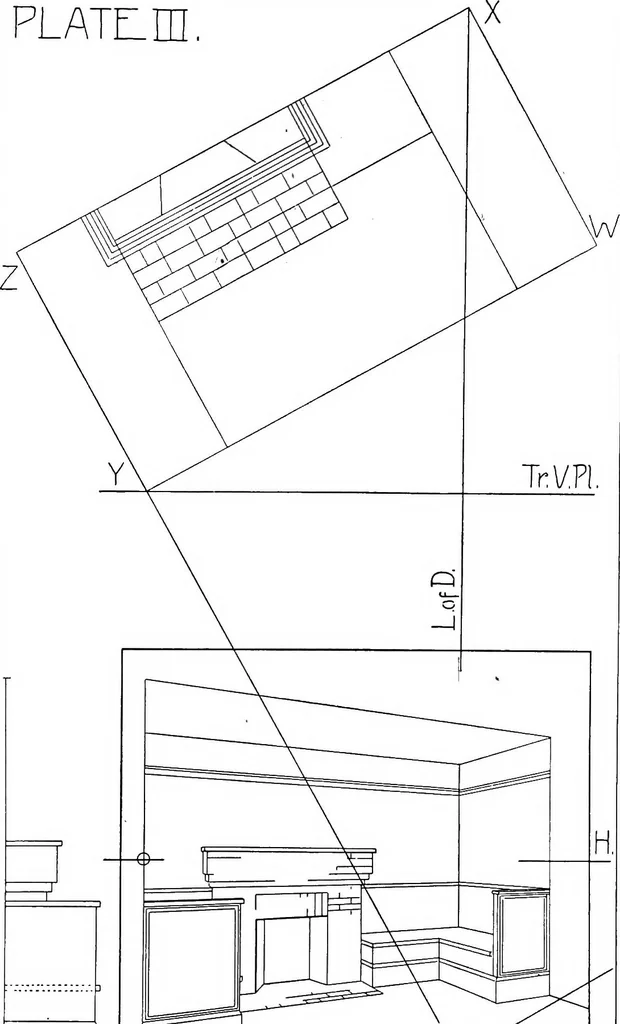

. for the problem was found. S. P.—X (theL. of D.) was next drawn, and Tr. V. PI. wasdrawn at right angles to the L. of D. throughpoint Y. The paper was then taken from theboard and repinned with Tr. V. PL as a hori-zontal line. P. L. was placed at S. P. and H.placed 38 above P. L. V. P. L. was… … SJ.B^ P. Li 29 SIMPLIFIED MECHANICAL PERSPECTIVE. to H. V. P. R. falls outside the margin line. When drawing per-spectives of interiors, students should use large drawing boards, orfasten small boards to the top of tables, to secure room for the vanish-ing points. These points, when located, can be…
