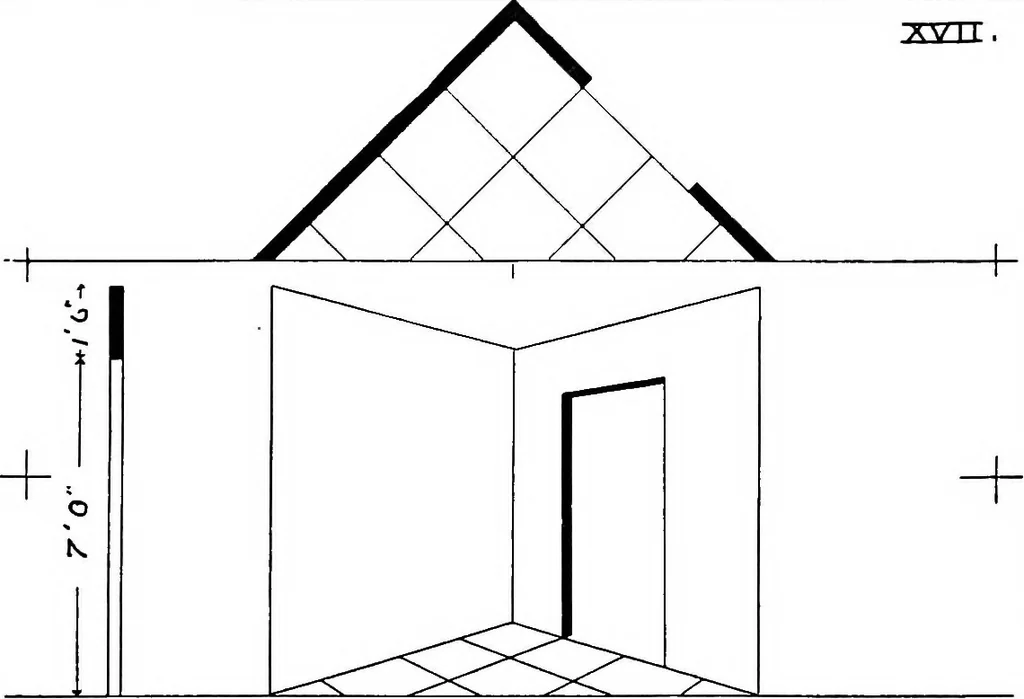

N J m ~* r … 260. He assumes the vertical plane-to be 180 from his eye. Theperspective represents that part of the room (80) lying beyond thevertical plane. The statement of the diagram will be: Scale J4=10.S. P. 220 to right and 30 above . C. V. 180 from S. P., P. L.at S. P., H. 40 above P. L. 31 SIMPLIFIED…
