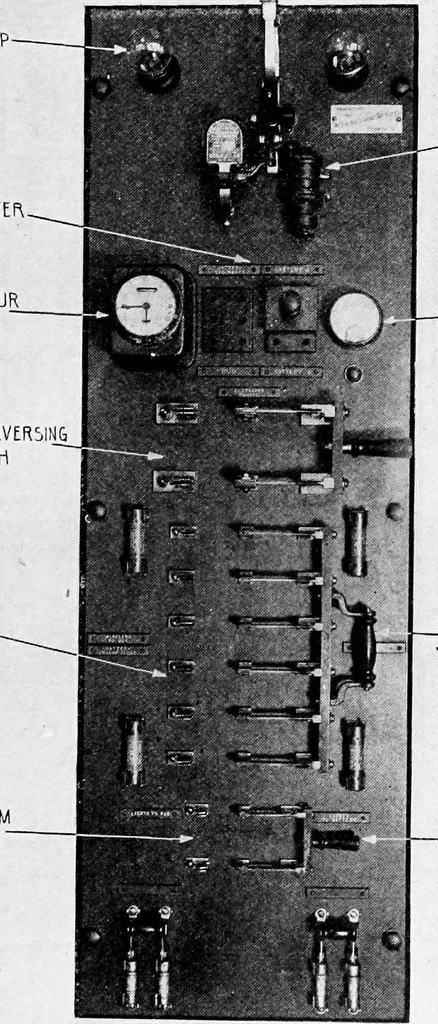

blades 1 and 2 and coils R-4, R-5 and R-6, through the blades 3 and 4 tobattery B. The overload circuit breaker K is connected in series with the common charginglead of battery units A and B. The winding of the no-voltage release magnet for this breakerindicated at N has the series protective… … UNDERLOAD ANDOVERLOAD bREAKER VOLTMETER __pi5CHARCiE SIDE■OF SWITCH LIGHTS FROM^ATTEF^Y Fig. 206—Standard Charging Panel Supplied by the Electric Storage Battery Company for Marine Use. 184 PRACTICAL WIRELESS TELEGRAPHY.
