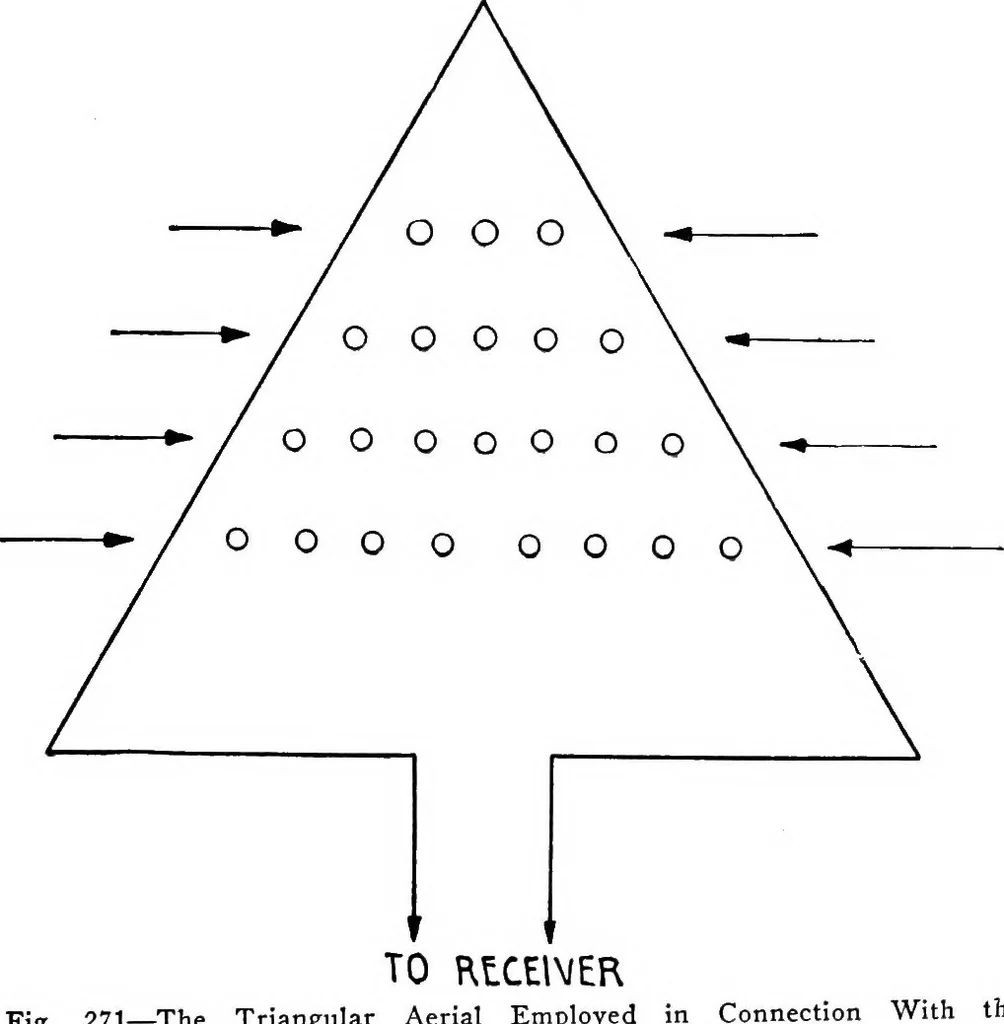

does not take intoaccount the phenomenainvolved when bothloops are employed andthe consequent effect onthe goniometer coil. Thiswill be explained in alater paragraph. Weshall first proceed to adescription of the direc-tion finder complete. 207. The CircuitComplete. — Carefulinspection should bemade… … Fig. 271—The Triangular Aerial EmployedDirection Finder. Connection With the connected in series with condenser K-1 and the excitation coil L-1. K-1 have identical values of capacity and their capacities are altered simultaneously by a handle mounted on the top of the box as shown in Fig. 267. ■il*…
