Collected papers on acoustics (1922)

Sabine, Wallace Clement · Cambridge, Harvard University Press; [etc., etc.] · leaf 35

An illustration from Collected papers on acoustics, 1922, leaf 35

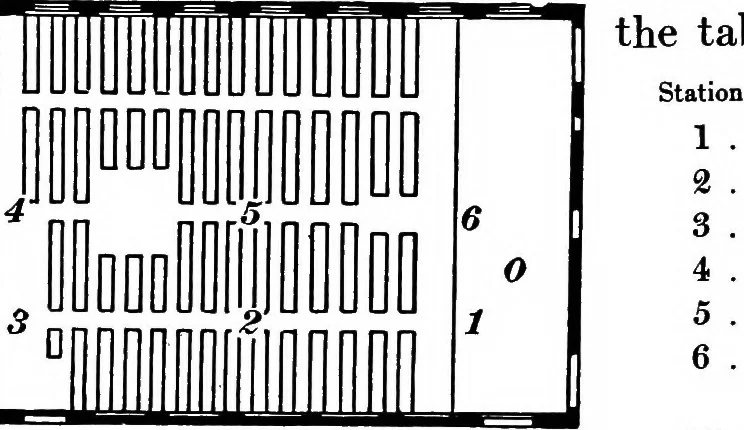

more accurate, but notespecially directed to this point, have verified the above generalstatement quite conclusively. The duration of audibility is nearly independent of the position ofthe source. — The observer remaining at the point marked 0 in the diagram of the large lecture-roomof the… … Fig. 3. Lecture-room, Jefferson PhysicalLaboratory: position of observer at 0;positions of air reservoir and organ pipe1-6. The efficiency of an absorbent inreducing the duration of the residualsound is, under ordinary circum-stances, nearly independent of itsposition. — Fifty meters of cretonne…

Architectural acoustics
