Reynolds, Osborne, 1842-1912, Brightmore, Arthur William, 1864-, Moorby, William Henry, 1872- · Cambridge [Eng.] The University Press · leaf 301

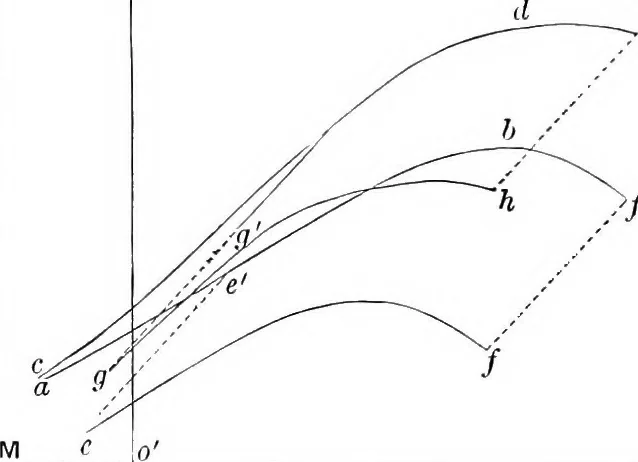

o. 3, both for hydrogen and air. By tracing the log curvesfor stucco No. 1, together with the axes, on a piece of tracing paper, and thenmoving the tracing (so that the axes remain parallel to their originaldirection) until the traced curves fit on to the curves for meerschaum No. 3,it is found… … h Hydrogen. >/ Air. -10 12 Log. Pressure. Fig- 7.curve gli coincides with a portion of cd. The effect of the superposition isshown in the figure, eb and gd being the portions of the curves which overlap.0 is the new position of 0. It will at once be seen that OM is the logarithm of the ratio of…
