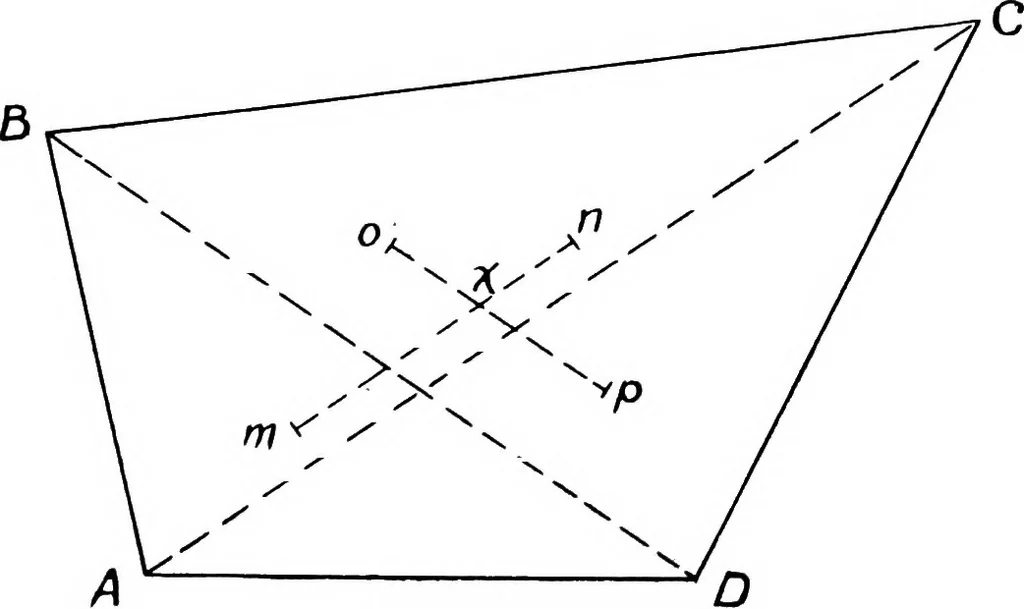

FIG. 6. X Dn). The center of gravity is on a line connecting the centers of thecomponent triangles. In fig. 7, m and n are the centers of the triangles.\BD and BCD, while o and p are the centers of the triangles ABC andACD. Draw lines mn and op. Their point of intersection, x, is then tin- … FIG. 7. ICI.KMENTS OF YACHT DESIGN II center of the figure ABCD. A somewhat quicker method of finding thecenter of such a figure is shown in figure 8. Draw the diagonals Ac andBd. Lay off Cn=Am. Draw Bn. Bisect Bn and Bd, o and p being the
