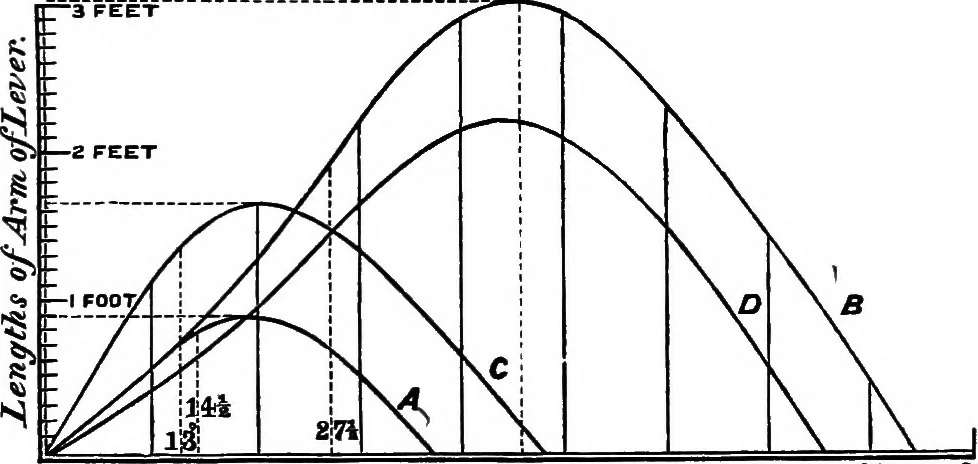

tive influence of the above-mentionedfeatures. The following cross-sections will serve the purpose :— Dimensions. No. 1. No. 2. No. 3. Beam ....Draught ....FreeboardMetacentric height (GM) feet.50i21 6*26 feet. 2?2*6 feet. ? Taking No. 1 as a standard for comparison, its curve of stabilityis shown… … 10 20 30 40 50 60 70 80 90 Angles of IneLiita-tion. Similarly, the effect of adding 7 feet to the beam is seen by com-paring the curve of stability C for No. 3 with the other two curves.Only a few further words of explanation will be necessary. At an inclination of 14J degrees, the deck-edge, or…
