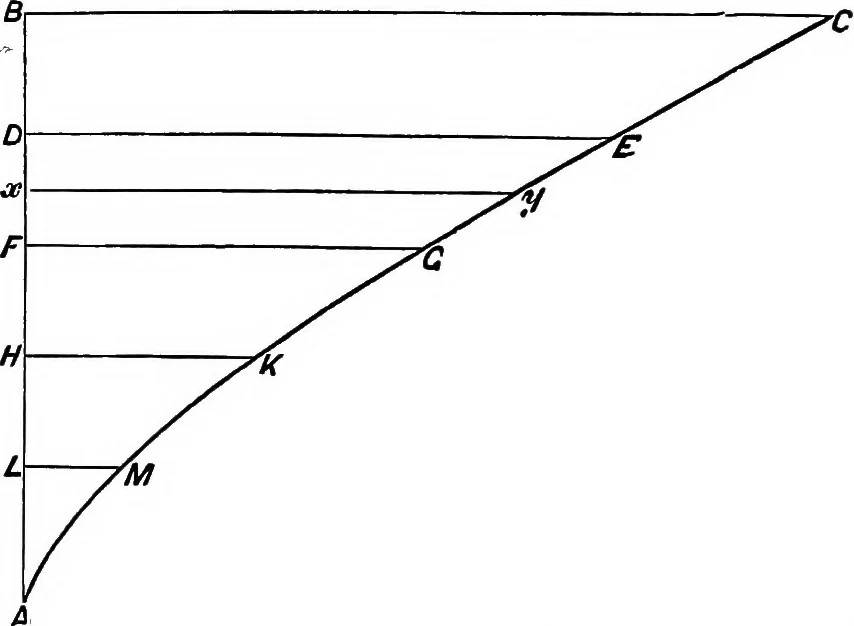

m the drawings of the ship, in the manner beforementioned. Then a line AB is drawn, the point A representing theunder side of the keel, and the length AB representing the meandraught of the ship when fully laden; this mean draught beinghalf the sum of the draughts of water forward and aft. Through… … tons of displacement. Suppose the displacement to have beenalso calculated up to another water-line (represented by DE inthe diagram) parallel to and at a known distance below the load-line (BO). Then on DE a length is set off representing this seconddisplacement on the same scale as was used for…
