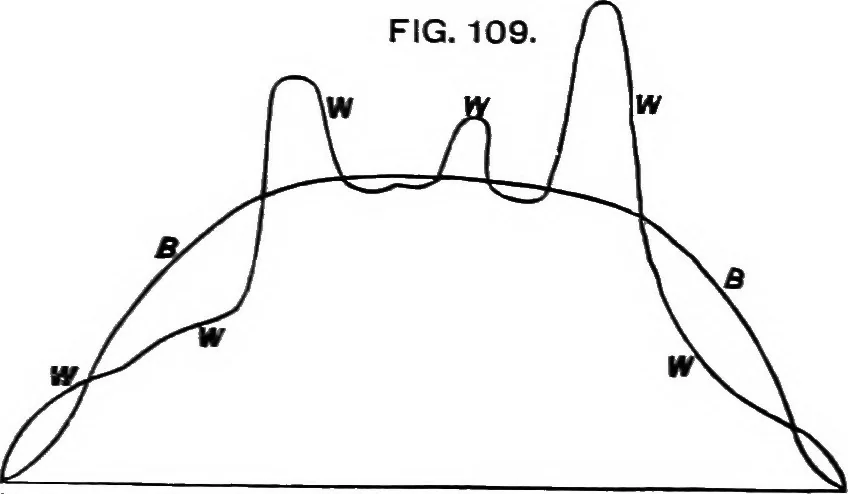

In the Devastation class of the Eoyal Navy, a far less simpledistribution of the weight and buoyancy is found than that occurringin the Minotaur type. Figs. 109 and 110 illustrate this case. The x ?o6 XA YAL ARCHITECTURE. [chap. vhi. spur-bow and fall form forward, as well as the absence of… … e A before the central breastwork, where buoyancy is in excess by about520 tons; this is succeeded by a great excess of weight—550 tons on32 feet of length—under the foremost turret. Along the centralpart of the ship, where the armoured breastwork is situated, and themachinery and boilers are…
