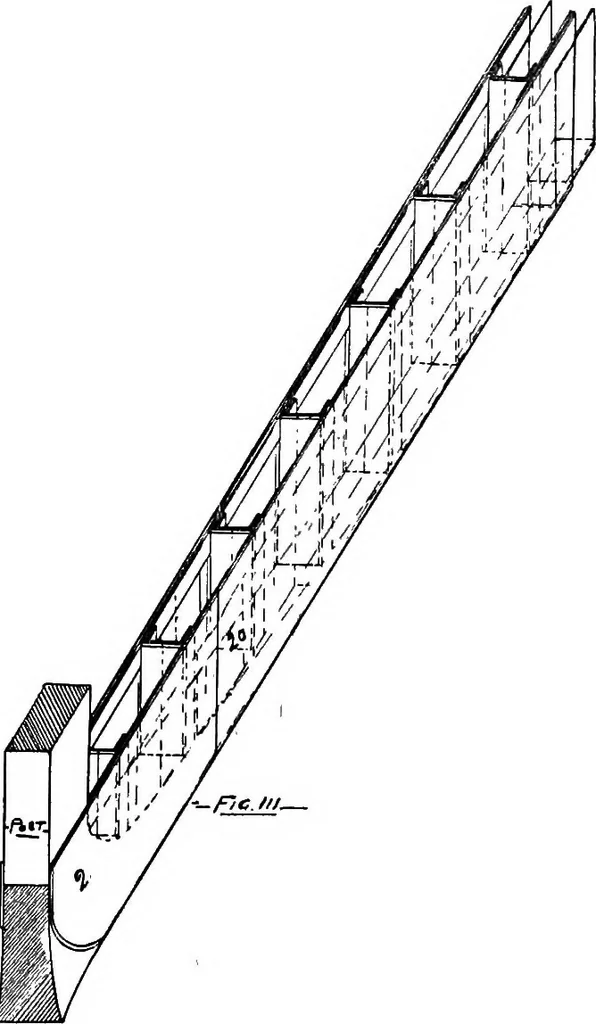

piece andflanged to the transomfloor. ABCD, Fig. 114, repre-sents the rudder trunkconnected to the stern postand plating, looking acrossship. This trunk is paralleland is expanding; same istreated as a beveled pipe. On the line AB with 3as center a half circleis described A, 1, 2, 3, 4,5. This half… … STEEL SHIP CONSTRUCTION 105 The line AB being square to the stern post this Hne is extendedover to ELG, being made in length equal to the circumference of therudder trunk including the flanges to the transom frame. LF is put in at right angles toELG, representing the after endof the trunk AC.…
