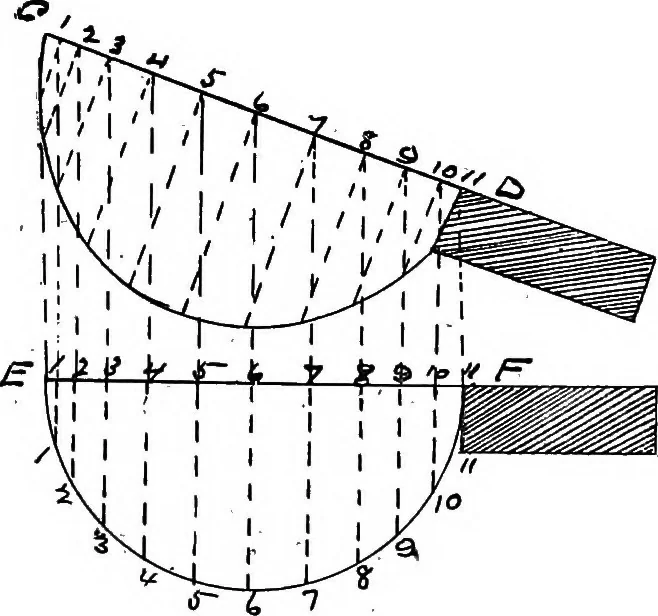

e numbers. , . At the bottom and a convenient distance from CD the line,.EF,^jsput in and a half circle drawn with 6.as center-, the points E and FiDeing perpendicular from C and D. The half circle is divided- into■eleven spaces similarly to the top and the points 1, 2, 3, 4, etc.,… … _ /^Q //^_ 110 LAKE SHIP YARD METHODS OF Fig. 117 shows the method of expanding the plate for rudder trunk. A line is drawn parallel to EF, Fig. 116, intersecting 6 on the lineCD after which the line AC is continued until it intersects the newline at right angles to 6-6 the center of the rudder…
