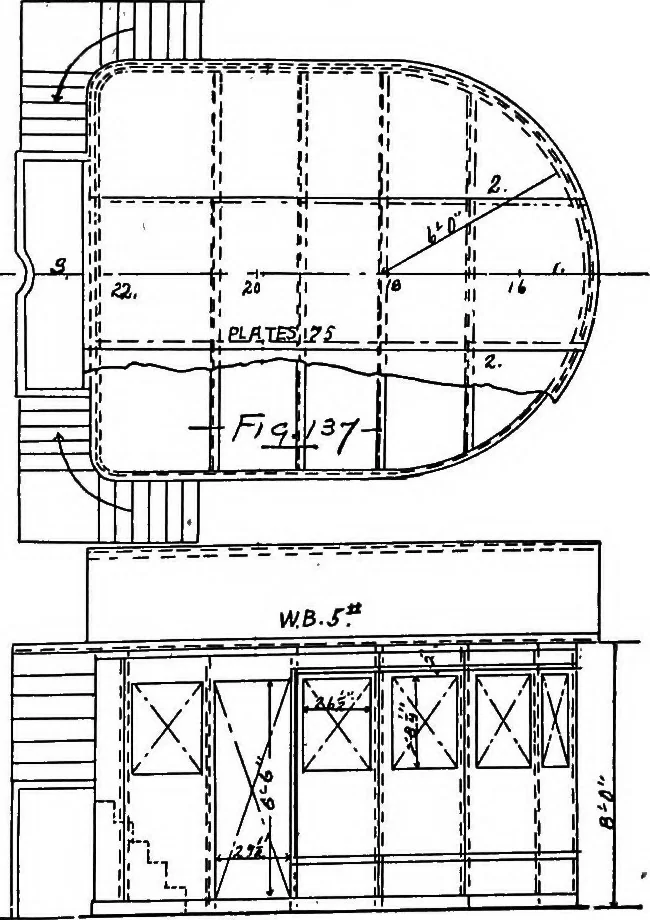

s are on the stiffeners arebolted up on the opposite sideafter which the beams andbrackets are bolted to thestiffeners. Before rivetingthe sides stout timbers arebolted to the plating length-wise which keeps the housenice and fair. The top of the house is allmarked from the ship afterthe beams are… … /-7p. /■36, CHAPTER X MAST MAKING Fig. 139 shows A, the fore, and B, main mast, of the usual con-struction on the great lakes. The fore mast is 72 ft. long and themain mast 69 ft. The diameters at the heels are 19 inches, taperingto 8>4 inches at the head. The top masts are 10 ft. long and are…
