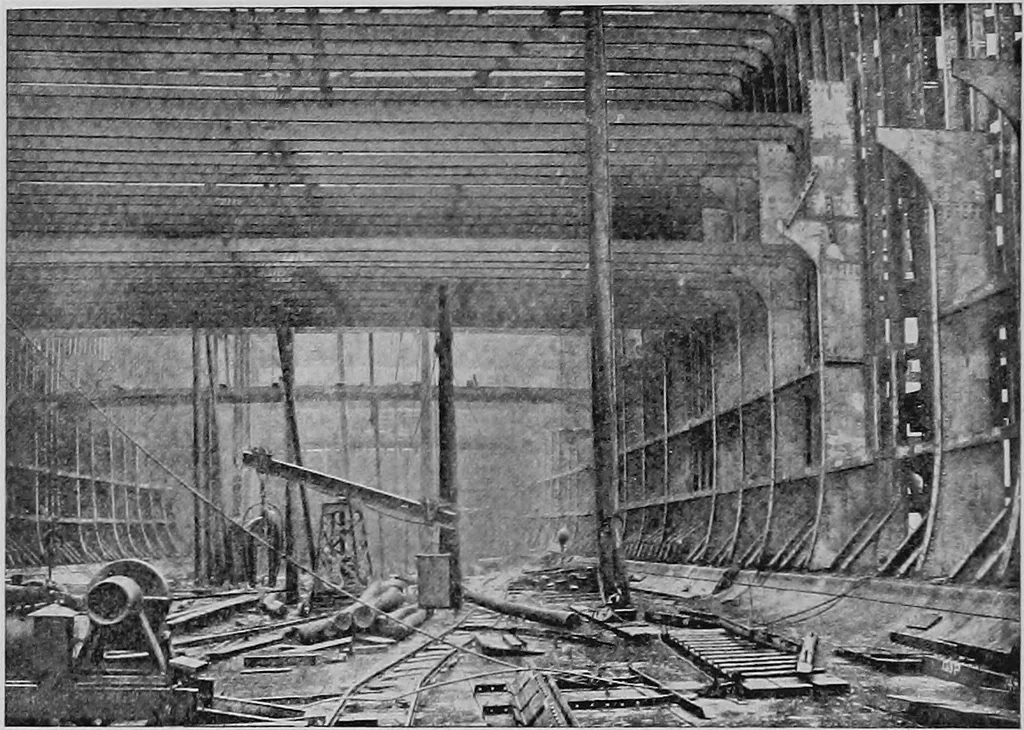

ule laid out in the shop prior toerecting same on vessel. 148 LAKE SHIP YARD METHODS OF The conduit work is put upon the tank top and erected with ginpoles as shown by Fig. 159. Fig. 160 shows the erecting of the side framing, which is com-posed of channels nine inches deep amidships, and angles… … Fig. 162. Belt frames are 30 in. deep and Yi in. thick, with frames doubleto shell and heavy face bars continued from tank top to main deck.The bottom framing is composed of floor plate and angle; the angleis jogged over the shell plating inway of the inside strakes in thedouble bottom. The beams…
