Lake ship yard methods of steel ship construction (1907)
Curr, Robert · Cleveland : The Marine review · leaf 160

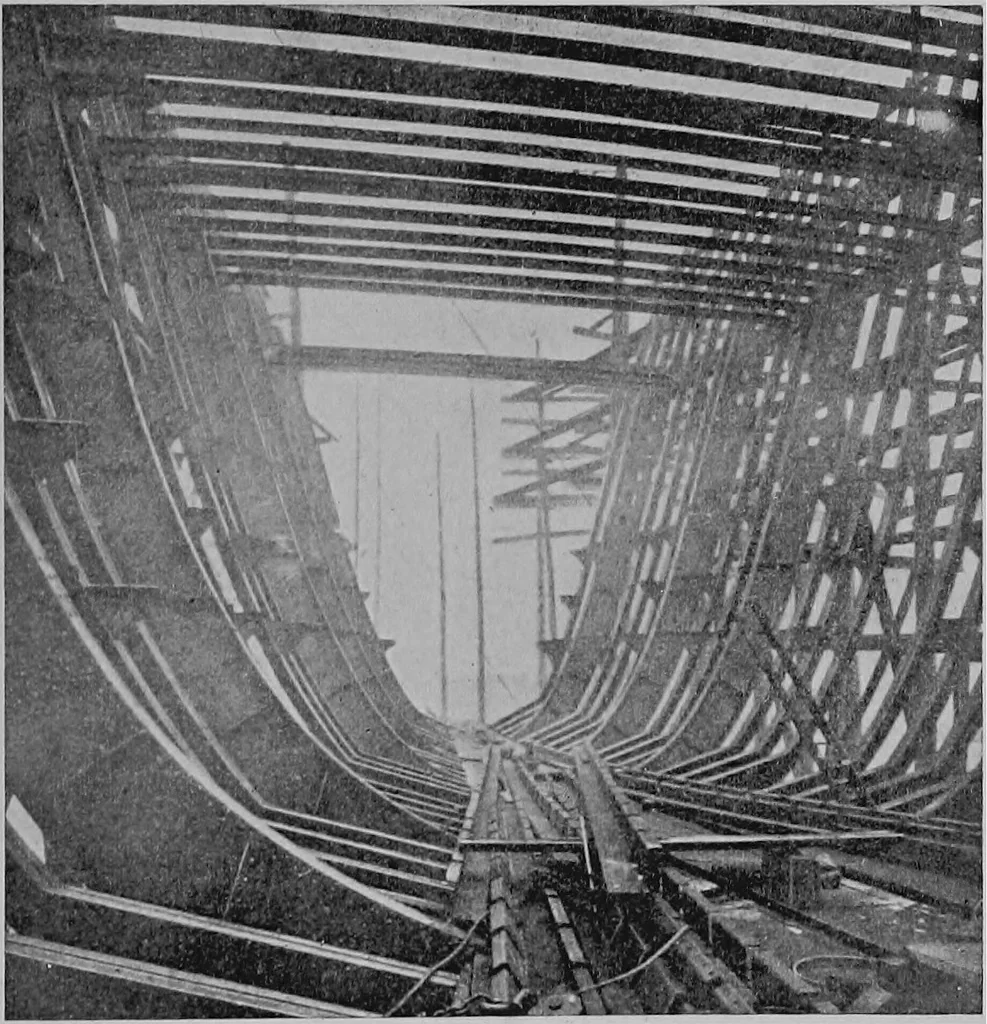

m. The beams are erected along with the frames, asshown by Figs. 160, 161 and 162. Fig. 161 shows the engine room with framing up abaft same. Thepoles at each side are for hoisting the frames and beams to place. STEEL SHIP CONSTRUCTION 149 Fig. 162 shows the framing and deck beams amidships. Fig.… … Fig. 163. over the machinery space. Fig. 166 shows the bridge and shelterdeck construction forward. Fig. 167 shows the machinery compartment during construction.The forest of shores will be noticed inside of the vessel during con- ISO LAKE SHIP YARD METHODS OF struction and how much could be saved…
