Lake ship yard methods of steel ship construction (1907)
Curr, Robert · Cleveland : The Marine review · leaf 161

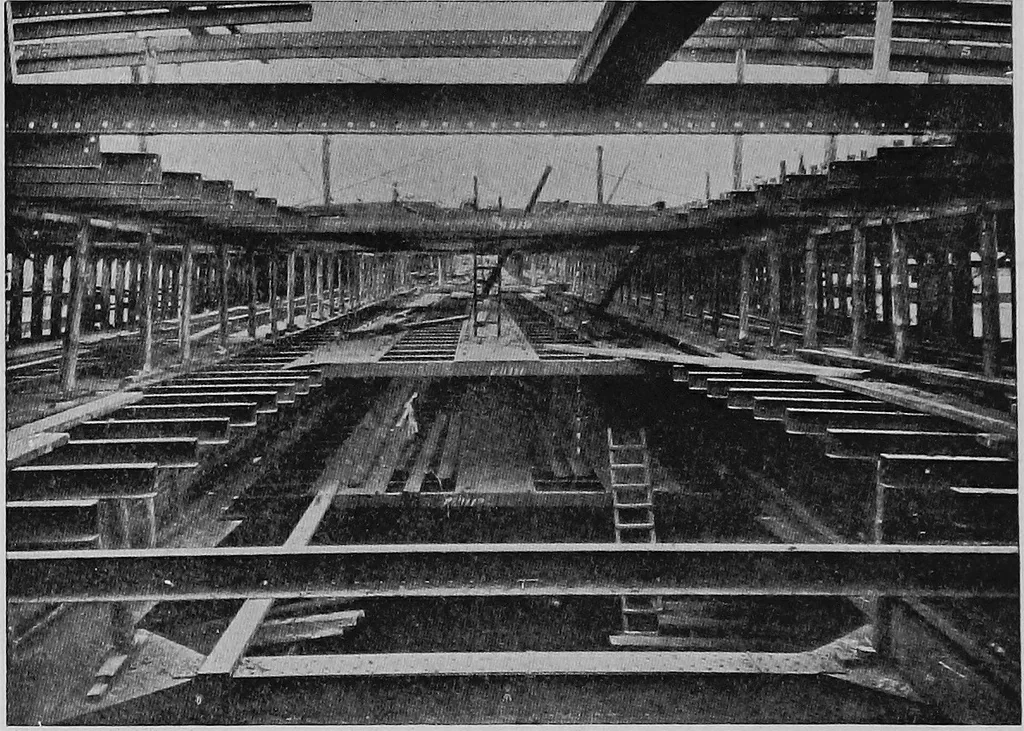

nery compartment during construction.The forest of shores will be noticed inside of the vessel during con- ISO LAKE SHIP YARD METHODS OF struction and how much could be saved by having the material allmade from the mold loft. Fig. 168 shows the boiler room with the seatings completed forthe… … Fig. 165. The four top side strakes of the plating of the hull are doublestrapped and quadruple riveted. Within the range of the double bottom the shell is also double-strapped* treble riveted inside, and double riveted outside and thebutts of the keel plates are treble riveted. Wherever possible,…
Naval architecture · Ships, Iron and steel
